Specifications: Audi A4 Avant (B8 8K, facelift 2011) 1.8 TFSI (170 Hp) Multitronic 2012, 2013, 2014, 2015

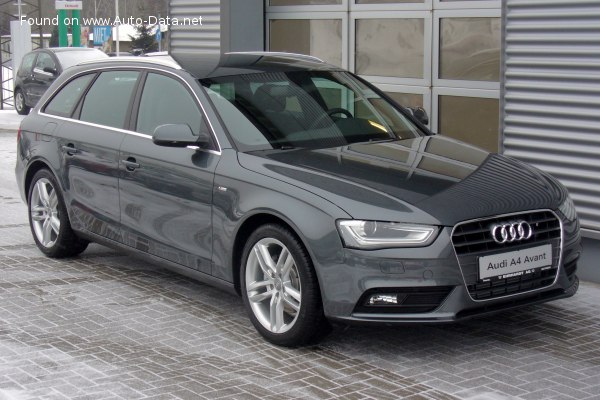

2011 Audi A4 Avant (B8 8K, facelift 2011) - Photo 1

Audi A4 Avant (B8 8K, facelift 2011) 1.8 TFSI (170 Hp) Multitronic – Full specifications
General information
Brand Audi
Model A4
Generation A4 Avant (B8 8K, facelift 2011)
Modification (Engine) 1.8 TFSI (170 Hp) Multitronic
Start of production 2012 year
End of production 2015 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 7 l/100 km
33.6 US mpg
40.35 UK mpg
14.29 km/l
Fuel consumption (economy) – extra urban 5.4 l/100 km
43.56 US mpg
52.31 UK mpg
18.52 km/l
Fuel consumption (economy) – combined 6 l/100 km
39.2 US mpg
47.08 UK mpg
16.67 km/l
CO2 emissions 139 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 8.3 sec
Acceleration 0 – 62 mph 8.3 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 7.9 sec
Maximum speed 215 km/h
133.59 mph
Emission standard Euro 5
Weight-to-power ratio 9 kg/Hp, 111.1 Hp/tonne
Weight-to-torque ratio 4.8 kg/Nm, 209.2 Nm/tonne
Engine specs
Power 170 Hp @ 3800-6200 rpm.
Power per litre 94.5 Hp/l
Torque 320 Nm @ 1400-3700 rpm.
236.02 lb.-ft. @ 1400-3700 rpm.
Engine layout Front, Longitudinal
Engine Model/Code EA888 / CJEB
Engine displacement 1798 cm3
109.72 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 82.5 mm
3.25 in.
Piston Stroke 84.1 mm
3.31 in.
Compression ratio 9.6:1
Number of valves per cylinder 4
Fuel injection system Direct injection and Multi-port manifold injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 4.6 l
4.86 US qt | 4.05 UK qt
Engine oil specification Log in to see.Log in to see.
Engine systems Start & Stop System

Space, Volume and weights
Kerb Weight 1530 kg
3373.07 lbs.
Max. weight 2100 kg
4629.71 lbs.
Max load 570 kg
1256.63 lbs.
Trunk (boot) space – minimum 490 l
17.3 cu. ft.
Trunk (boot) space – maximum 1430 l
50.5 cu. ft.
Fuel tank capacity 63 l
16.64 US gal | 13.86 UK gal
Max. roof load 90 kg
198.42 lbs.
Permitted trailer load with brakes (8%) 1700 kg
3747.86 lbs.
Permitted trailer load with brakes (12%) 1500 kg
3306.93 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 80 kg
176.37 lbs.
Dimensions
Length 4699 mm
185 in.
Width 1826 mm
71.89 in.
Width including mirrors 2040 mm
80.31 in.
Height 1436 mm
56.54 in.
Wheelbase 2808 mm
110.55 in.
Front track 1564 mm
61.57 in.
Rear (Back) track 1551 mm
61.06 in.
Front overhang 862 mm
33.94 in.
Rear overhang 1029 mm
40.51 in.
Drag coefficient (Cd) 0.31
Minimum turning circle (turning diameter) 11.5 m
37.73 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox automatic transmission Multitronic
Front suspension Independent multi-link suspension, Transverse stabilizer
Rear suspension Independent on trapezoidal lever, Transverse stabilizer
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 225/55 R16
Wheel rims size 7.5J x 16
