Specifications: Audi A4 (B6 8E) 1.9 TDI (101 Hp) 2001, 2002, 2003, 2004

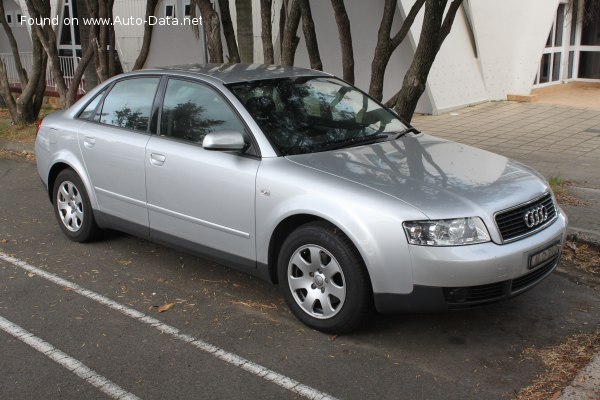

2001 Audi A4 (B6 8E) - Photo 1

Audi A4 (B6 8E) 1.9 TDI (101 Hp) – Full specifications
General information
Brand Audi
Model A4
Generation A4 (B6 8E)
Modification (Engine) 1.9 TDI (101 Hp)
Start of production April, 2001 year
End of production May, 2004 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 7 l/100 km
33.6 US mpg
40.35 UK mpg
14.29 km/l
Fuel consumption (economy) – extra urban 4.5 l/100 km
52.27 US mpg
62.77 UK mpg
22.22 km/l
Fuel consumption (economy) – combined 5.4 l/100 km
43.56 US mpg
52.31 UK mpg
18.52 km/l
Fuel Type Diesel
Acceleration 0 – 100 km/h 12.1 sec
Acceleration 0 – 62 mph 12.1 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 11.5 sec
Maximum speed 195 km/h
121.17 mph
Weight-to-power ratio 13.6 kg/Hp, 73.5 Hp/tonne
Weight-to-torque ratio 5.5 kg/Nm, 181.8 Nm/tonne
Engine specs
Power 101 Hp @ 4000 rpm.
Power per litre 53.3 Hp/l
Torque 250 Nm @ 1900 rpm.
184.39 lb.-ft. @ 1900 rpm.
Engine layout Front, Longitudinal
Engine Model/Code AVB
Engine displacement 1896 cm3
115.7 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 79.5 mm
3.13 in.
Piston Stroke 95.5 mm
3.76 in.
Compression ratio 19:1
Number of valves per cylinder 2
Fuel injection system Pump-nozzle (Unit Injector)
Engine aspiration Turbocharger, Intercooler
Valvetrain OHC
Engine oil capacity 4.5 l
4.76 US qt | 3.96 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6 l
6.34 US qt | 5.28 UK qt

Space, Volume and weights
Kerb Weight 1375 kg
3031.36 lbs.
Max. weight 1925 kg
4243.9 lbs.
Max load 550 kg
1212.54 lbs.
Trunk (boot) space – minimum 445 l
15.72 cu. ft.
Trunk (boot) space – maximum 720 l
25.43 cu. ft.
Fuel tank capacity 70 l
18.49 US gal | 15.4 UK gal
Dimensions
Length 4548 mm
179.06 in.
Width 1772 mm
69.76 in.
Height 1428 mm
56.22 in.
Wheelbase 2650 mm
104.33 in.
Front track 1528 mm
60.16 in.
Rear (Back) track 1526 mm
60.08 in.
Drag coefficient (Cd) 0.29
Minimum turning circle (turning diameter) 11.1 m
36.42 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent multi-link suspension
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 195/65 R15
Wheel rims size 15
