Specifications: Audi A4 (B7 8E) 2.0 TDI (140 Hp) quattro DPF 2005, 2006, 2007, 2008

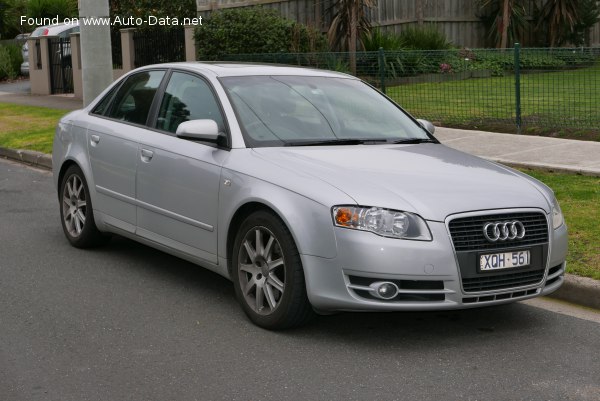

2005 Audi A4 (B7 8E) - Photo 1

Audi A4 (B7 8E) 2.0 TDI (140 Hp) quattro DPF – Full specifications
General information
Brand Audi
Model A4
Generation A4 (B7 8E)
Modification (Engine) 2.0 TDI (140 Hp) quattro DPF
Start of production 2005 year
End of production 2008 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 8.6 – 8.7 l/100 km
27.35 – 27.04 US mpg
32.85 – 32.47 UK mpg
11.63 – 11.49 km/l
Fuel consumption (economy) – extra urban 5.5 – 5.6 l/100 km
42.77 – 42 US mpg
51.36 – 50.44 UK mpg
18.18 – 17.86 km/l
Fuel consumption (economy) – combined 6.6 – 6.7 l/100 km
35.64 – 35.11 US mpg
42.8 – 42.16 UK mpg
15.15 – 14.93 km/l
CO2 emissions 178 – 181 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 9.7 sec
Acceleration 0 – 62 mph 9.7 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9.2 sec
Maximum speed 207 km/h
128.62 mph
Emission standard Euro 4
Weight-to-power ratio 10.7 kg/Hp, 93.3 Hp/tonne
Weight-to-torque ratio 4.7 kg/Nm, 213.3 Nm/tonne
Engine specs
Power 140 Hp @ 4000 rpm.
Power per litre 71.1 Hp/l
Torque 320 Nm @ 1750-2500 rpm.
236.02 lb.-ft. @ 1750-2500 rpm.
Engine layout Front, Longitudinal
Engine Model/Code EA188 / BPW
Engine displacement 1968 cm3
120.09 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 81 mm
3.19 in.
Piston Stroke 95.5 mm
3.76 in.
Compression ratio 18:1
Number of valves per cylinder 2
Fuel injection system Pump-nozzle (Unit Injector)
Engine aspiration Turbocharger, Intercooler
Valvetrain OHC
Engine oil capacity 3.8 l
4.02 US qt | 3.34 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 8 l
8.45 US qt | 7.04 UK qt
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 1500 kg
3306.93 lbs.
Max. weight 2050 kg
4519.48 lbs.
Max load 550 kg
1212.54 lbs.
Trunk (boot) space – minimum 460 l
16.24 cu. ft.
Trunk (boot) space – maximum 833 l
29.42 cu. ft.
Fuel tank capacity 63 l
16.64 US gal | 13.86 UK gal
Max. roof load 75 kg
165.35 lbs.
Permitted trailer load with brakes (8%) 1800 kg
3968.32 lbs.
Permitted trailer load with brakes (12%) 1600 kg
3527.4 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 80 kg
176.37 lbs.
Dimensions
Length 4586 mm
180.55 in.
Width 1772 mm
69.76 in.
Width including mirrors 1937 mm
76.26 in.
Height 1427 mm
56.18 in.
Wheelbase 2648 mm
104.25 in.
Front track 1522 mm
59.92 in.
Rear (Back) track 1522 mm
59.92 in.
Drag coefficient (Cd) 0.29
Minimum turning circle (turning diameter) 11.1 m
36.42 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent multi-link suspension
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 205/65 R16
Wheel rims size 7J x 16
