Specifications: Audi A4 (B8 8K) 1.8 TFSI (160 Hp) 2007, 2008, 2009, 2010, 2011

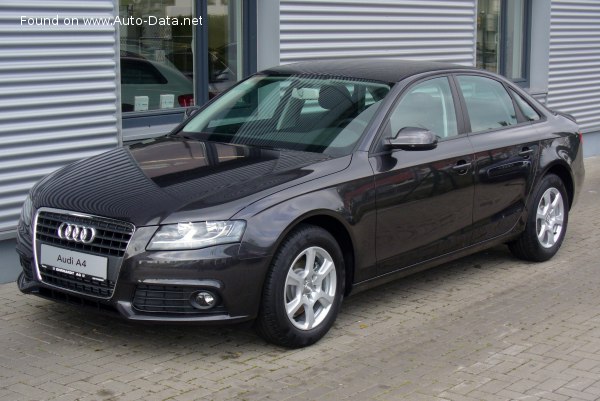

2008 Audi A4 (B8 8K) - Photo 1

Audi A4 (B8 8K) 1.8 TFSI (160 Hp) – Full specifications
General information
Brand Audi
Model A4
Generation A4 (B8 8K)
Modification (Engine) 1.8 TFSI (160 Hp)
Start of production May, 2007 year
End of production 2011 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 9.9 l/100 km
23.76 US mpg
28.53 UK mpg
10.1 km/l
Fuel consumption (economy) – extra urban 5.5 l/100 km
42.77 US mpg
51.36 UK mpg
18.18 km/l
Fuel consumption (economy) – combined 7.1 l/100 km
33.13 US mpg
39.79 UK mpg
14.08 km/l
CO2 emissions 169 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 8.6 sec
Acceleration 0 – 62 mph 8.6 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 8.2 sec
Maximum speed 225 km/h
139.81 mph
Emission standard Euro 4
Weight-to-power ratio 8.8 kg/Hp, 113.5 Hp/tonne
Weight-to-torque ratio 5.6 kg/Nm, 177.3 Nm/tonne
Engine specs
Power 160 Hp @ 4500-6200 rpm.
Power per litre 89 Hp/l
Torque 250 Nm @ 1500-4500 rpm.
184.39 lb.-ft. @ 1500-4500 rpm.
Engine layout Front, Longitudinal
Engine Model/Code EA888 / CDHB
Engine displacement 1798 cm3
109.72 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 82.5 mm
3.25 in.
Piston Stroke 84.1 mm
3.31 in.
Compression ratio 9.6:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 4.6 l
4.86 US qt | 4.05 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7 l
7.4 US qt | 6.16 UK qt

Space, Volume and weights
Kerb Weight 1410 kg
3108.52 lbs.
Max. weight 1960 kg
4321.06 lbs.
Max load 550 kg
1212.54 lbs.
Trunk (boot) space – minimum 480 l
16.95 cu. ft.
Trunk (boot) space – maximum 962 l
33.97 cu. ft.
Fuel tank capacity 65 l
17.17 US gal | 14.3 UK gal
Max. roof load 75 kg
165.35 lbs.
Permitted trailer load with brakes (8%) 1500 kg
3306.93 lbs.
Permitted trailer load with brakes (12%) 1300 kg
2866.01 lbs.
Permitted trailer load without brakes 740 kg
1631.42 lbs.
Permitted towbar download 80 kg
176.37 lbs.
Dimensions
Length 4703 mm
185.16 in.
Width 1826 mm
71.89 in.
Height 1427 mm
56.18 in.
Wheelbase 2808 mm
110.55 in.
Front track 1564 mm
61.57 in.
Rear (Back) track 1551 mm
61.06 in.
Drag coefficient (Cd) 0.27
Minimum turning circle (turning diameter) 11.4 m
37.4 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent multi-link suspension
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 225/55 R16; 225/50 R17
Wheel rims size 7.5J x 16; 7.5J x 17
