Specifications: Audi A4 Cabriolet (B6 8H) 2.0 (131 Hp) 2002, 2003, 2004, 2005

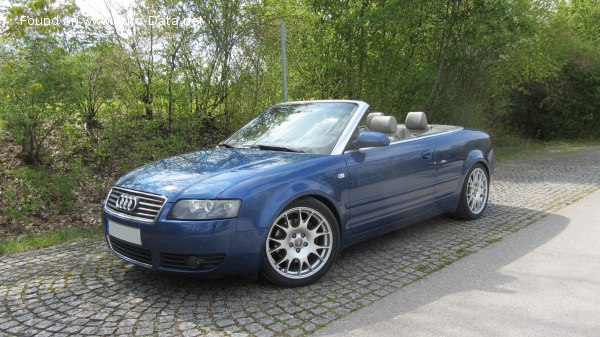

2002 Audi A4 Cabriolet (B6 8H) - Photo 1

Audi A4 Cabriolet (B6 8H) 2.0 (131 Hp) – Full specifications
General information
Brand Audi
Model A4
Generation A4 Cabriolet (B6 8H)
Modification (Engine) 2.0 (131 Hp)
Start of production 2002 year
End of production 2005 year
Powertrain Architecture Internal Combustion engine
Body type Cabriolet
Seats 4
Doors 2
Performance specs
Fuel consumption (economy) – urban 12.1 l/100 km
19.44 US mpg
23.35 UK mpg
8.26 km/l
Fuel consumption (economy) – extra urban 6.6 l/100 km
35.64 US mpg
42.8 UK mpg
15.15 km/l
Fuel consumption (economy) – combined 8.6 l/100 km
27.35 US mpg
32.85 UK mpg
11.63 km/l
CO2 emissions 206 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 10.9 sec
Acceleration 0 – 62 mph 10.9 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 10.4 sec
Maximum speed 208 km/h
129.25 mph
Emission standard Euro 4
Weight-to-power ratio 11.6 kg/Hp, 86.2 Hp/tonne
Weight-to-torque ratio 7.8 kg/Nm, 128.3 Nm/tonne
Engine specs
Power 131 Hp @ 5700 rpm.
Power per litre 66 Hp/l
Torque 195 Nm @ 3300 rpm.
143.82 lb.-ft. @ 3300 rpm.
Engine layout Front, Longitudinal
Engine Model/Code ALT
Engine displacement 1984 cm3
121.07 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 82.5 mm
3.25 in.
Piston Stroke 92.8 mm
3.65 in.
Compression ratio 10.3:1
Number of valves per cylinder 5
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 4.2 l
4.44 US qt | 3.7 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7 l
7.4 US qt | 6.16 UK qt

Space, Volume and weights
Kerb Weight 1520 kg
3351.03 lbs.
Max. weight 2000 kg
4409.25 lbs.
Max load 480 kg
1058.22 lbs.
Trunk (boot) space – minimum 246 l
8.69 cu. ft.
Trunk (boot) space – maximum 315 l
11.12 cu. ft.
Fuel tank capacity 70 l
18.49 US gal | 15.4 UK gal
Permitted trailer load with brakes (8%) 1500 kg
3306.93 lbs.
Permitted trailer load with brakes (12%) 1300 kg
2866.01 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 80 kg
176.37 lbs.
Dimensions
Length 4573 mm
180.04 in.
Width 1777 mm
69.96 in.
Height 1391 mm
54.76 in.
Wheelbase 2654 mm
104.49 in.
Front track 1523 mm
59.96 in.
Rear (Back) track 1523 mm
59.96 in.
Drag coefficient (Cd) 0.30
Minimum turning circle (turning diameter) 11.1 m
36.42 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent multi-link suspension
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 205/55 R16
Wheel rims size 7J x 16
