Specifications: Audi A4 Cabriolet (B7 8H) 1.8 T (163 Hp) 2005, 2006, 2007, 2008

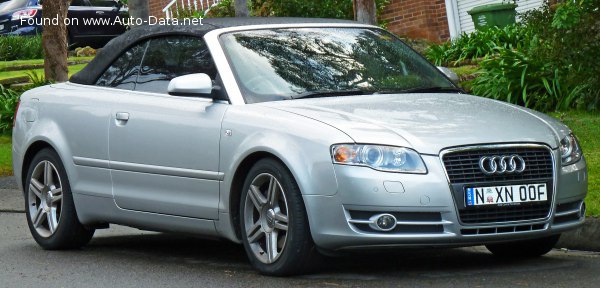

2006 Audi A4 Cabriolet (B7 8H) - Photo 1

Audi A4 Cabriolet (B7 8H) 1.8 T (163 Hp) – Full specifications
General information
Brand Audi
Model A4
Generation A4 Cabriolet (B7 8H)
Modification (Engine) 1.8 T (163 Hp)
Start of production 2005 year
End of production 2008 year
Powertrain Architecture Internal Combustion engine
Body type Cabriolet
Seats 4
Doors 2
Performance specs
Fuel consumption (economy) – urban 11.6 l/100 km
20.28 US mpg
24.35 UK mpg
8.62 km/l
Fuel consumption (economy) – extra urban 6.7 l/100 km
35.11 US mpg
42.16 UK mpg
14.93 km/l
Fuel consumption (economy) – combined 8.5 l/100 km
27.67 US mpg
33.23 UK mpg
11.76 km/l
CO2 emissions 204 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 9.4 sec
Acceleration 0 – 62 mph 9.4 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 8.9 sec
Maximum speed 226 km/h
140.43 mph
Emission standard Euro 4
Weight-to-power ratio 9.4 kg/Hp, 105.8 Hp/tonne
Weight-to-torque ratio 6.8 kg/Nm, 146.1 Nm/tonne
Engine specs
Power 163 Hp @ 5700 rpm.
Power per litre 91.5 Hp/l
Torque 225 Nm @ 1950-4700 rpm.
165.95 lb.-ft. @ 1950-4700 rpm.
Engine layout Front, Longitudinal
Engine Model/Code BFB
Engine displacement 1781 cm3
108.68 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 81 mm
3.19 in.
Piston Stroke 86.4 mm
3.4 in.
Compression ratio 9.3:1
Number of valves per cylinder 5
Fuel injection system Multi-port manifold injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 4.1 l
4.33 US qt | 3.61 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 8 l
8.45 US qt | 7.04 UK qt

Space, Volume and weights
Kerb Weight 1540 kg
3395.12 lbs.
Max. weight 2020 kg
4453.34 lbs.
Max load 480 kg
1058.22 lbs.
Trunk (boot) space – minimum 246 l
8.69 cu. ft.
Trunk (boot) space – maximum 315 l
11.12 cu. ft.
Fuel tank capacity 70 l
18.49 US gal | 15.4 UK gal
Permitted trailer load with brakes (8%) 1600 kg
3527.4 lbs.
Permitted trailer load with brakes (12%) 1400 kg
3086.47 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 80 kg
176.37 lbs.
Dimensions
Length 4573 mm
180.04 in.
Width 1777 mm
69.96 in.
Height 1391 mm
54.76 in.
Wheelbase 2654 mm
104.49 in.
Front track 1523 mm
59.96 in.
Rear (Back) track 1523 mm
59.96 in.
Drag coefficient (Cd) 0.30
Minimum turning circle (turning diameter) 11.1 m
36.42 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent multi-link suspension
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 205/55 R16
Wheel rims size 7J x 16
