Specifications: Audi A5 Cabriolet (F5, facelift 2019) 50 TDI V6 (286 Hp) quattro Tiptronic 2019, 2020

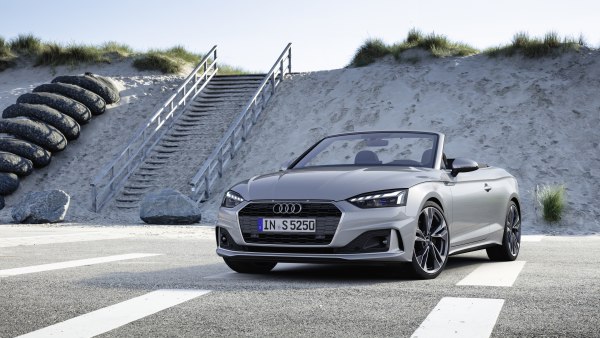

2020 Audi A5 Cabriolet (F5, facelift 2019) - Photo 1

Audi A5 Cabriolet (F5, facelift 2019) 50 TDI V6 (286 Hp) quattro Tiptronic – Full specifications
General information
Brand Audi
Model A5
Generation A5 Cabriolet (F5, facelift 2019)
Modification (Engine) 50 TDI V6 (286 Hp) quattro Tiptronic
Start of production 2019 year
End of production 2020 year
Powertrain Architecture Internal Combustion engine
Body type Cabriolet
Seats 4
Doors 2
Performance specs
Fuel consumption (economy) – urban 7.0-7.3 l/100 km
33.6 – 32.22 US mpg
40.35 – 38.7 UK mpg
14.29 – 13.7 km/l
Fuel consumption (economy) – extra urban 5.1-5.6 l/100 km
46.12 – 42 US mpg
55.39 – 50.44 UK mpg
19.61 – 17.86 km/l
Fuel consumption (economy) – combined 5.8-6.2 l/100 km
40.55 – 37.94 US mpg
48.7 – 45.56 UK mpg
17.24 – 16.13 km/l
CO2 emissions 153-163 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 5.7 sec
Acceleration 0 – 62 mph 5.7 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 5.4 sec
Maximum speed 250 km/h
155.34 mph
Emission standard Euro 6d – TEMP – EVAP – ISC
Weight-to-power ratio 6.5 kg/Hp, 153.8 Hp/tonne
Weight-to-torque ratio 3 kg/Nm, 333.3 Nm/tonne
Engine specs
Power 286 Hp @ 3500-4000 rpm.
Power per litre 96.4 Hp/l
Torque 620 Nm @ 2250-3000 rpm.
457.29 lb.-ft. @ 2250-3000 rpm.
Engine layout Front, Longitudinal
Engine Model/Code DCPC
Engine displacement 2967 cm3
181.06 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 83 mm
3.27 in.
Piston Stroke 91.4 mm
3.6 in.
Compression ratio 16:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Engine oil capacity 6.1 l
6.45 US qt | 5.37 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 11.5 l
12.15 US qt | 10.12 UK qt
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1860 kg
4100.6 lbs.
Max. weight 2380 kg
5247 lbs.
Max load 520 kg
1146.4 lbs.
Trunk (boot) space – minimum 380 l
13.42 cu. ft.
Fuel tank capacity 58 l
15.32 US gal | 12.76 UK gal
AdBlue tank 12 l
3.17 US gal | 2.64 UK gal
Permitted trailer load with brakes (8%) 2100 kg
4629.71 lbs.
Permitted trailer load with brakes (12%) 1900 kg
4188.78 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 80 kg
176.37 lbs.
Dimensions
Length 4697 mm
184.92 in.
Width 1846 mm
72.68 in.
Width including mirrors 2029 mm
79.88 in.
Height 1384 mm
54.49 in.
Wheelbase 2764 mm
108.82 in.
Front track 1587 mm
62.48 in.
Rear (Back) track 1568 mm
61.73 in.
Front overhang 898 mm
35.35 in.
Rear overhang 1035 mm
40.75 in.
Drag coefficient (Cd) 0.28
Minimum turning circle (turning diameter) 11.5 m
37.73 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives permanently the four wheels of the vehicle.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 8 gears, automatic transmission Tiptronic
Front suspension Independent multi-link suspension
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 225/50 R17 98 Y
Wheel rims size 7.5J x 17
