Specifications: Audi A5 Coupe (8T3, facelift 2011) 2.0 TFSI (225 Hp) Multitronic 2013, 2014, 2015, 2016

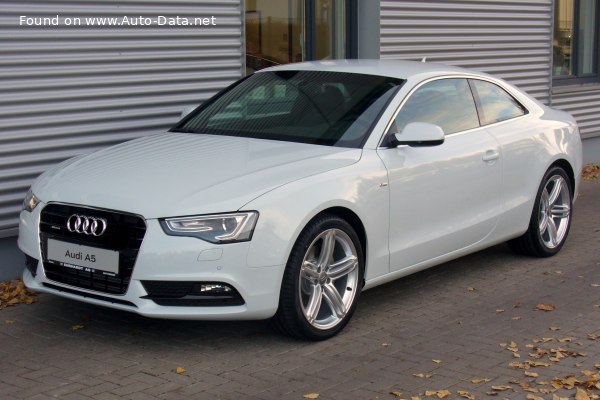

2012 Audi A5 Coupe (8T3, facelift 2011) - Photo 1

Audi A5 Coupe (8T3, facelift 2011) 2.0 TFSI (225 Hp) Multitronic – Full specifications
General information
Brand Audi
Model A5
Generation A5 Coupe (8T3, facelift 2011)
Modification (Engine) 2.0 TFSI (225 Hp) Multitronic
Start of production April, 2013 year
End of production 2016 year
Powertrain Architecture Internal Combustion engine
Body type Coupe
Seats 4
Doors 2
Performance specs
Fuel consumption (economy) – urban 7.4-7.9 l/100 km
31.79 – 29.77 US mpg
38.17 – 35.76 UK mpg
13.51 – 12.66 km/l
Fuel consumption (economy) – extra urban 5-5.6 l/100 km
47.04 – 42 US mpg
56.5 – 50.44 UK mpg
20 – 17.86 km/l
Fuel consumption (economy) – combined 5.9-6.4 l/100 km
39.87 – 36.75 US mpg
47.88 – 44.14 UK mpg
16.95 – 15.63 km/l
CO2 emissions 136-149 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 6.9 sec
Acceleration 0 – 62 mph 6.9 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 6.6 sec
Maximum speed 242 km/h
150.37 mph
Emission standard Euro 6
Weight-to-power ratio 6.6 kg/Hp, 152.5 Hp/tonne
Weight-to-torque ratio 4.2 kg/Nm, 237.3 Nm/tonne
Engine specs
Power 225 Hp @ 4500-6250 rpm.
Power per litre 113.4 Hp/l
Torque 350 Nm @ 1500-4500 rpm.
258.15 lb.-ft. @ 1500-4500 rpm.
Engine layout Front, Longitudinal
Engine Model/Code EA888 / CNCD
Engine displacement 1984 cm3
121.07 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 82.5 mm
3.25 in.
Piston Stroke 92.8 mm
3.65 in.
Compression ratio 9.6:1
Number of valves per cylinder 4
Fuel injection system Direct injection and Multi-port manifold injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 4.6 l
4.86 US qt | 4.05 UK qt
Engine oil specification Log in to see.Log in to see.
Engine systems Start & Stop System

Space, Volume and weights
Kerb Weight 1475 kg
3251.82 lbs.
Max. weight 1975 kg
4354.13 lbs.
Max load 500 kg
1102.31 lbs.
Trunk (boot) space – minimum 455 l
16.07 cu. ft.
Trunk (boot) space – maximum 829 l
29.28 cu. ft.
Fuel tank capacity 63 l
16.64 US gal | 13.86 UK gal
Max. roof load 75 kg
165.35 lbs.
Permitted trailer load with brakes (8%) 1700 kg
3747.86 lbs.
Permitted trailer load with brakes (12%) 1500 kg
3306.93 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 80 kg
176.37 lbs.
Dimensions
Length 4626 mm
182.13 in.
Width 1854 mm
72.99 in.
Width including mirrors 2020 mm
79.53 in.
Height 1372 mm
54.02 in.
Wheelbase 2751 mm
108.31 in.
Front track 1590 mm
62.6 in.
Rear (Back) track 1577 mm
62.09 in.
Front overhang 861 mm
33.9 in.
Rear overhang 1014 mm
39.92 in.
Minimum turning circle (turning diameter) 11.4 m
37.4 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox automatic transmission Multitronic
Front suspension Independent multi-link suspension, Transverse stabilizer
Rear suspension Independent on trapezoidal lever, Transverse stabilizer
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 225/50 R17; 245/40 R18; 255/35 R19
Wheel rims size 7.5J x 17; 8.5J x 18; 8.5J x 19; 9J x 19
