Specifications: Audi A5 Coupe (F5, facelift 2019) 45 TFSI (245 Hp) quattro ultra S tronic 2019, 2020

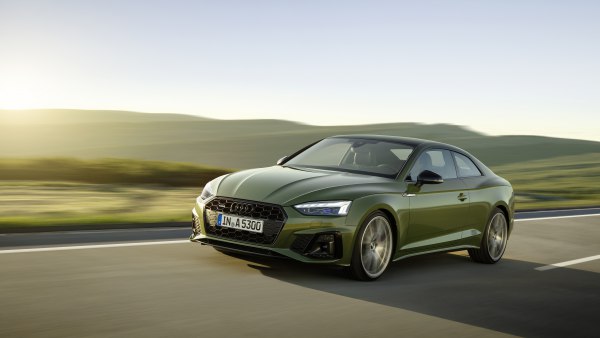

2020 Audi A5 Coupe (F5, facelift 2019) - Photo 1

Audi A5 Coupe (F5, facelift 2019) 45 TFSI (245 Hp) quattro ultra S tronic – Full specifications
General information
Brand Audi
Model A5
Generation A5 Coupe (F5, facelift 2019)
Modification (Engine) 45 TFSI (245 Hp) quattro ultra S tronic
Start of production 2019 year
End of production 2020 year
Powertrain Architecture Internal Combustion engine
Body type Coupe
Seats 4
Doors 2
Performance specs
Fuel consumption (economy) – urban 8.4-8.6 l/100 km
28 – 27.35 US mpg
33.63 – 32.85 UK mpg
11.9 – 11.63 km/l
Fuel consumption (economy) – extra urban 5.2-5.6 l/100 km
45.23 – 42 US mpg
54.32 – 50.44 UK mpg
19.23 – 17.86 km/l
Fuel consumption (economy) – combined 6.4-6.7 l/100 km
36.75 – 35.11 US mpg
44.14 – 42.16 UK mpg
15.63 – 14.93 km/l
CO2 emissions 145-152 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 5.8 sec
Acceleration 0 – 62 mph 5.8 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 5.5 sec
Maximum speed 250 km/h
155.34 mph
Emission standard Euro 6d – TEMP – EVAP – ISC
Weight-to-power ratio 6.2 kg/Hp, 160.1 Hp/tonne
Weight-to-torque ratio 4.1 kg/Nm, 241.8 Nm/tonne
Engine specs
Power 245 Hp @ 5000-6500 rpm.
Power per litre 123.5 Hp/l
Torque 370 Nm @ 1600-4300 rpm.
272.9 lb.-ft. @ 1600-4300 rpm.
Engine layout Front, Longitudinal
Engine Model/Code DKNA
Engine displacement 1984 cm3
121.07 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 82.5 mm
3.25 in.
Piston Stroke 92.8 mm
3.65 in.
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Engine oil capacity 5.2 l
5.49 US qt | 4.58 UK qt
Engine oil specification Log in to see.Log in to see.
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1530 kg
3373.07 lbs.
Max. weight 2035 kg
4486.41 lbs.
Max load 505 kg
1113.33 lbs.
Trunk (boot) space – minimum 450 l
15.89 cu. ft.
Fuel tank capacity 58 l
15.32 US gal | 12.76 UK gal
Max. roof load 75 kg
165.35 lbs.
Permitted trailer load with brakes (8%) 1900 kg
4188.78 lbs.
Permitted trailer load with brakes (12%) 1700 kg
3747.86 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 80 kg
176.37 lbs.
Dimensions
Length 4697 mm
184.92 in.
Width 1846 mm
72.68 in.
Width including mirrors 2029 mm
79.88 in.
Height 1371 mm
53.98 in.
Wheelbase 2764 mm
108.82 in.
Front track 1587 mm
62.48 in.
Rear (Back) track 1568 mm
61.73 in.
Front overhang 898 mm
35.35 in.
Rear overhang 1035 mm
40.75 in.
Minimum turning circle (turning diameter) 11.5 m
37.73 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels permanently, and the rear wheels are driven through an electrically or mechanically operated clutch if necessary.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 7 gears, automatic transmission S tronic
Front suspension Independent multi-link suspension
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 225/50 R17
Wheel rims size 7.5J x 17
