Specifications: Audi A5 Sedan (B10) 2.0 TDI (204 Hp) Mild Hybrid plus S tronic 2024, 2025

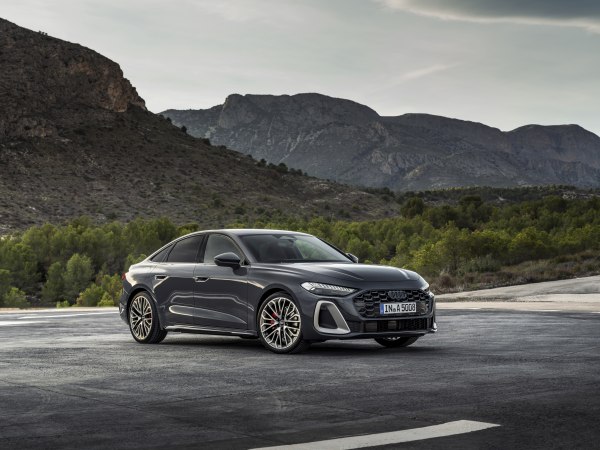

2025 Audi A5 Sedan (B10) - Photo 1

Audi A5 Sedan (B10) 2.0 TDI (204 Hp) Mild Hybrid plus S tronic – Full specifications
General information
Brand Audi
Model A5
Generation A5 Sedan (B10)
Modification (Engine) 2.0 TDI (204 Hp) Mild Hybrid plus S tronic
Start of production July, 2024 year
Powertrain Architecture MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV)
Body type Liftback
Seats 5
Doors 5
Performance specs
Combined fuel consumption (WLTP) 4.7-5.4 l/100 km
50.05 – 43.56 US mpg
60.1 – 52.31 UK mpg
21.28 – 18.52 km/l
CO2 emissions (WLTP) 124-142 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 7.7 sec
Acceleration 0 – 62 mph 7.7 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 7.3 sec
Maximum speed 242 km/h
150.37 mph
Emission standard Euro 6e
Weight-to-power ratio 8.9 kg/Hp, 112.1 Hp/tonne
Weight-to-torque ratio 4.6 kg/Nm, 219.8 Nm/tonne
Electric cars and hybrids specs
Battery voltage 48 V
Battery technology Lithium iron phosphate (LiFePO4)
Battery location Under the trunk
Recuperation output 25 kW
Electric motor 1
Electric motor power 24 Hp
Electric motor Torque 230 Nm

169.64 lb.-ft.
Electric motor location Middle, Longitudinal
Internal combustion engine specs
Power 204 Hp @ 3800-4200 rpm.
Power per litre 103.7 Hp/l
Torque 400 Nm @ 1750-3250 rpm.
295.02 lb.-ft. @ 1750-3250 rpm.
Engine layout Front, Longitudinal
Engine Model/Code EA288 evo
Engine displacement 1968 cm3
120.09 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 81 mm
3.19 in.
Piston Stroke 95.5 mm
3.76 in.
Compression ratio 15.5:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 5.5 l
5.81 US qt | 4.84 UK qt
Coolant 18.7 l
19.76 US qt | 16.45 UK qt
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1820 kg
4012.41 lbs.
Max. weight 2410 kg
5313.14 lbs.
Max load 590 kg
1300.73 lbs.
Trunk (boot) space – minimum 417 l
14.73 cu. ft.
Trunk (boot) space – maximum 1271 l
44.88 cu. ft.
Fuel tank capacity 60 l
15.85 US gal | 13.2 UK gal
AdBlue tank 20 l
5.28 US gal | 4.4 UK gal
Max. roof load 90 kg
198.42 lbs.
Permitted trailer load with brakes (8%) 1900 kg
4188.78 lbs.
Permitted trailer load with brakes (12%) 1700 kg
3747.86 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 80 kg
176.37 lbs.
Dimensions
Length 4829 mm
190.12 in.
Width 1860 mm
73.23 in.
Width including mirrors 2099 mm
82.64 in.
Height 1444 mm
56.85 in.
Wheelbase 2892 mm
113.86 in.
Front track 1624 mm
63.94 in.
Rear (Back) track 1611 mm
63.43 in.
Front overhang 908 mm
35.75 in.
Rear overhang 1029 mm
40.51 in.
Drag coefficient (Cd) 0.27
Minimum turning circle (turning diameter) 12.1 m
39.7 ft.
Approach angle 14.1°
Departure angle 18.5°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and electric motor drive the front wheels of the car with the ability to work in full electric or mixed mode.
Drive wheel Front wheel drive
Number of gears and type of gearbox 7 gears, automatic transmission S tronic
Front suspension Coil spring, Independent multi-link suspension, Transverse stabilizer
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs, 338 mm
Rear brakes Disc, 330 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 205/60 R17; 215/55 R17; 225/55 R17; 235/45 R18; 245/40 R19; 245/35 R20
Wheel rims size 7J x 17; 7.5J x 17; 8J x 18; 8J x 19; 8.5J x 19; 8.5J x 20
