Specifications: Audi A5 Sedan (B10) 2.0 TFSI (299 Hp) e-hybrid quattro ultra S tronic 2025

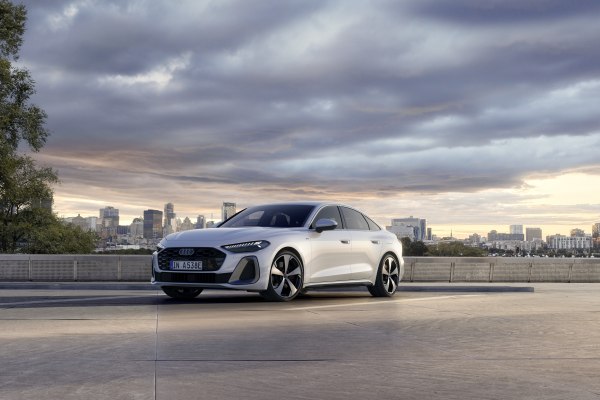

2025 Audi A5 Sedan (B10) - Photo 1

Audi A5 Sedan (B10) 2.0 TFSI (299 Hp) e-hybrid quattro ultra S tronic – Full specifications
General information
Brand Audi
Model A5
Generation A5 Sedan (B10)
Modification (Engine) 2.0 TFSI (299 Hp) e-hybrid quattro ultra S tronic
Start of production March, 2025 year
Powertrain Architecture PHEV (Plug-in Hybrid Electric Vehicle)
Body type Liftback
Seats 5
Doors 5
Performance specs
Combined fuel consumption (WLTP) 2-7.3 l/100 km
117.61 – 32.22 US mpg
141.24 – 38.7 UK mpg
50 – 13.7 km/l
CO2 emissions (WLTP) 45-60 g/km
Fuel Type Petrol / electricity
Acceleration 0 – 100 km/h 5.9 sec
Acceleration 0 – 62 mph 5.9 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 5.6 sec
Maximum speed 250 km/h, Electronically limited
155.34 mph
Emission standard Euro 6e
Weight-to-power ratio 6.9 kg/Hp, 144.4 Hp/tonne
Weight-to-torque ratio 4.6 kg/Nm, 217.4 Nm/tonne
Electric cars and hybrids specs
Gross battery capacity 25.9 kWh
Net (usable) battery capacity 20.7 kWh
Battery voltage 400 V
Battery technology Lithium-ion (Li-Ion)
Battery location Under the trunk
Recuperation output 88 kW
All-electric range (WLTP) 110 km
68.35 mi
Average Energy consumption (WLTP) 14.9-15.7 kWh/100 km

23.98 – 25.27 kWh/100 mi
141 – 133 MPGe
6.7 – 6.4 km/kWh
4.2 – 4 mi/kWh
Max speed (electric) 140 km/h

86.99 mph
Charging ports Log in to see.Log in to see.
Electric motor 1
Electric motor power 143 Hp
Electric motor Torque 350 Nm

258.15 lb.-ft.
Electric motor location Between the combustion engine and the transmission
Electric motor type Synchronous
System power 299 Hp
System torque 450 Nm
331.9 lb.-ft.
Internal combustion engine specs
Power 252 Hp @ 5000-6500 rpm.
Power per litre 127 Hp/l
Torque 380 Nm @ 1600-4500 rpm.
280.27 lb.-ft. @ 1600-4500 rpm.
Engine layout Front, Longitudinal
Engine displacement 1984 cm3
121.07 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 82.5 mm
3.25 in.
Piston Stroke 92.8 mm
3.65 in.
Compression ratio 12.5:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 6 l
6.34 US qt | 5.28 UK qt
Coolant 13 l
13.74 US qt | 11.44 UK qt
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 2070 kg
4563.57 lbs.
Max. weight 2635 kg
5809.18 lbs.
Max load 565 kg
1245.61 lbs.
Trunk (boot) space – minimum 331 l
11.69 cu. ft.
Trunk (boot) space – maximum 1175 l
41.49 cu. ft.
Fuel tank capacity 46 l
12.15 US gal | 10.12 UK gal
Max. roof load 90 kg
198.42 lbs.
Permitted trailer load with brakes (8%) 1900 kg
4188.78 lbs.
Permitted trailer load with brakes (12%) 1700 kg
3747.86 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 80 kg
176.37 lbs.
Dimensions
Length 4829 mm
190.12 in.
Width 1860 mm
73.23 in.
Width including mirrors 2099 mm
82.64 in.
Height 1443 mm
56.81 in.
Wheelbase 2892 mm
113.86 in.
Front track 1620 mm
63.78 in.
Rear (Back) track 1607 mm
63.27 in.
Front overhang 908 mm
35.75 in.
Rear overhang 1029 mm
40.51 in.
Drag coefficient (Cd) 0.27
Minimum turning circle (turning diameter) 12.2 m
40.03 ft.
Approach angle 14.2°
Departure angle 18.6°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and the electric motor permanently drive the front wheels of the vehicle, capable of running in full electric or mixed mode, and if necessary through the electrically or mechanically controlled clutch, the rear wheels are driven.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 7 gears, automatic transmission S tronic
Front suspension Coil spring, Independent multi-link suspension, Transverse stabilizer
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs, 360 mm
Rear brakes Ventilated discs, 330 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 235/45 R18
Wheel rims size 8J x 18
