Specifications: Audi A6 (4A,C4) 1.9 TDI (90 Hp) Automatic 1994, 1995, 1996

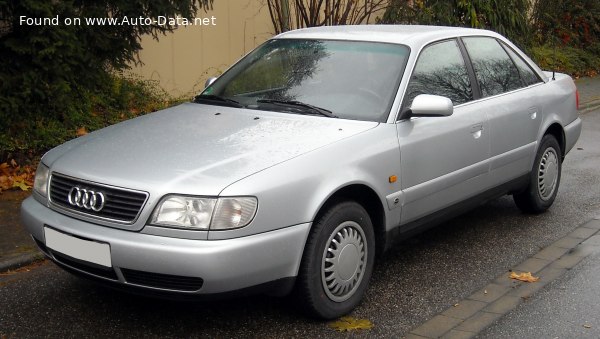

1995 Audi A6 (4A,C4) - Photo 1

Audi A6 (4A,C4) 1.9 TDI (90 Hp) Automatic – Full specifications
General information
Brand Audi
Model A6
Generation A6 (4A,C4)
Modification (Engine) 1.9 TDI (90 Hp) Automatic
Start of production July, 1994 year
End of production June, 1996 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 8.2 l/100 km
28.7 US mpg
34.4 UK mpg
12.2 km/l
Fuel consumption (economy) – extra urban 4.7 l/100 km
50 US mpg
60.1 UK mpg
21.3 km/l
Fuel consumption (economy) – combined 6.1 l/100 km
38.6 US mpg
46.3 UK mpg
16.4 km/l
Fuel Type Diesel
Acceleration 0 – 100 km/h 17.5 sec
Acceleration 0 – 62 mph 17.5 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 16.6 sec
Maximum speed 177 km/h
109.98 mph
Weight-to-power ratio 15.5 kg/Hp, 64.5 Hp/tonne
Weight-to-torque ratio 6.9 kg/Nm, 144.8 Nm/tonne
Engine specs
Power 90 Hp @ 4000 rpm.
Power per litre 47.5 Hp/l
Torque 202 Nm @ 1900 rpm.
148.99 lb.-ft. @ 1900 rpm.
Engine layout Front, Longitudinal
Engine Model/Code 1Z
Engine displacement 1896 cm3
115.7 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 79.5 mm
3.13 in.
Piston Stroke 95.5 mm
3.76 in.
Compression ratio 19.5:1
Number of valves per cylinder 2
Fuel injection system Direct injection
Engine aspiration Turbocharger
Valvetrain OHC
Engine oil capacity 3.5 l
3.7 US qt | 3.08 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.5 l
6.87 US qt | 5.72 UK qt

Space, Volume and weights
Kerb Weight 1395 kg
3075.45 lbs.
Max. weight 1945 kg
4287.99 lbs.
Max load 550 kg
1212.54 lbs.
Trunk (boot) space – maximum 510 l
18.01 cu. ft.
Fuel tank capacity 80 l
21.13 US gal | 17.6 UK gal
Max. roof load 100 kg
220.46 lbs.
Permitted trailer load with brakes (8%) 1400 kg
3086.47 lbs.
Permitted trailer load with brakes (12%) 1200 kg
2645.55 lbs.
Permitted trailer load without brakes 730 kg
1609.37 lbs.
Permitted towbar download 50 kg
110.23 lbs.
Dimensions
Length 4797 mm
188.86 in.
Width 1783 mm
70.2 in.
Height 1430 mm
56.3 in.
Wheelbase 2687 mm
105.79 in.
Front track 1520 mm
59.84 in.
Rear (Back) track 1524 mm
60 in.
Drag coefficient (Cd) 0.32
Minimum turning circle (turning diameter) 11.3 m
37.07 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 4 gears, automatic transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Semi-independent, coil spring
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 195/65 R15
Wheel rims size 6J x 15
