Specifications: Audi A6 (4F,C6 facelift 2008) 2.8 FSI V6 (190 Hp) 2008, 2009, 2010, 2011

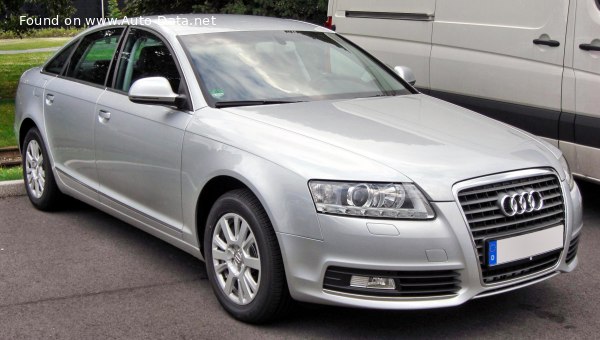

2009 Audi A6 (4F,C6 facelift 2008) - Photo 1

Audi A6 (4F,C6 facelift 2008) 2.8 FSI V6 (190 Hp) – Full specifications
General information
Brand Audi
Model A6
Generation A6 (4F,C6 facelift 2008)
Modification (Engine) 2.8 FSI V6 (190 Hp)
Start of production September, 2008 year
End of production August, 2011 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 12 l/100 km
19.6 US mpg
23.5 UK mpg
8.3 km/l
Fuel consumption (economy) – extra urban 6.1 l/100 km
38.6 US mpg
46.3 UK mpg
16.4 km/l
Fuel consumption (economy) – combined 8.2 l/100 km
28.7 US mpg
34.4 UK mpg
12.2 km/l
CO2 emissions 181 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 8.2 sec
Acceleration 0 – 62 mph 8.2 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 7.8 sec
Maximum speed 238 km/h
147.89 mph
Emission standard Euro 5
Weight-to-power ratio 8.2 kg/Hp, 122.6 Hp/tonne
Weight-to-torque ratio 5.5 kg/Nm, 180.6 Nm/tonne
Engine specs
Power 190 Hp @ 5500 rpm.
Power per litre 68.5 Hp/l
Torque 280 Nm @ 3000-4500 rpm.
206.52 lb.-ft. @ 3000-4500 rpm.
Engine layout Front, Longitudinal
Engine Model/Code CCDA
Engine displacement 2773 cm3
169.22 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 84.5 mm
3.33 in.
Piston Stroke 82.4 mm
3.24 in.
Compression ratio 12:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 6.2 l
6.55 US qt | 5.46 UK qt
Engine oil specification Log in to see.Log in to see.

Space, Volume and weights
Kerb Weight 1550 kg
3417.17 lbs.
Max. weight 2130 kg
4695.85 lbs.
Max load 580 kg
1278.68 lbs.
Trunk (boot) space – maximum 546 l
19.28 cu. ft.
Fuel tank capacity 70 l
18.49 US gal | 15.4 UK gal
Max. roof load 100 kg
220.46 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 85 kg
187.39 lbs.
Dimensions
Length 4927 mm
193.98 in.
Width 1855 mm
73.03 in.
Width including mirrors 2030 mm
79.92 in.
Height 1459 mm
57.44 in.
Wheelbase 2843 mm
111.93 in.
Front track 1612 mm
63.46 in.
Rear (Back) track 1618 mm
63.7 in.
Front overhang 994 mm
39.13 in.
Rear overhang 1090 mm
42.91 in.
Drag coefficient (Cd) 0.29
Minimum turning circle (turning diameter) 11.9 m
39.04 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent multi-link suspension
Rear suspension Independent on trapezoidal lever
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 205/60 R16
Wheel rims size 16
