Specifications: Audi A6 Avant (4A,C4) 2.5 TDI (140 Hp) quattro 1996, 1997

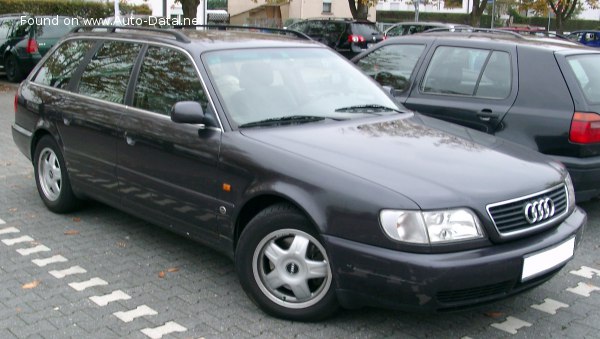

1995 Audi A6 Avant (4A,C4) - Photo 1

Audi A6 Avant (4A,C4) 2.5 TDI (140 Hp) quattro – Full specifications
General information
Brand Audi
Model A6
Generation A6 Avant (4A,C4)
Modification (Engine) 2.5 TDI (140 Hp) quattro
Start of production July, 1996 year
End of production October, 1997 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 8.6 l/100 km
27.4 US mpg
32.8 UK mpg
11.6 km/l
Fuel consumption (economy) – extra urban 4.9 l/100 km
48 US mpg
57.6 UK mpg
20.4 km/l
Fuel consumption (economy) – combined 6.8 l/100 km
34.6 US mpg
41.5 UK mpg
14.7 km/l
Fuel Type Diesel
Acceleration 0 – 100 km/h 10.2 sec
Acceleration 0 – 62 mph 10.2 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9.7 sec
Maximum speed 201 km/h
124.9 mph
Weight-to-power ratio 11.5 kg/Hp, 87 Hp/tonne
Weight-to-torque ratio 5.6 kg/Nm, 180.1 Nm/tonne
Engine specs
Power 140 Hp @ 4000 rpm.
Power per litre 56.9 Hp/l
Torque 290 Nm @ 1900 rpm.
213.89 lb.-ft. @ 1900 rpm.
Engine layout Front, Longitudinal
Engine Model/Code AEL
Engine displacement 2461 cm3
150.18 cu. in.
Number of cylinders 5
Engine configuration Inline
Cylinder Bore 81 mm
3.19 in.
Piston Stroke 95.5 mm
3.76 in.
Compression ratio 20:1
Number of valves per cylinder 2
Fuel injection system Direct injection
Engine aspiration Turbocharger
Valvetrain OHC
Engine oil capacity 5 l
5.28 US qt | 4.4 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.5 l
6.87 US qt | 5.72 UK qt

Space, Volume and weights
Kerb Weight 1610 kg
3549.44 lbs.
Max. weight 2160 kg
4761.98 lbs.
Max load 550 kg
1212.54 lbs.
Trunk (boot) space – minimum 390 l
13.77 cu. ft.
Trunk (boot) space – maximum 1310 l
46.26 cu. ft.
Fuel tank capacity 80 l
21.13 US gal | 17.6 UK gal
Max. roof load 100 kg
220.46 lbs.
Permitted trailer load with brakes (8%) 1750 kg
3858.09 lbs.
Permitted trailer load with brakes (12%) 1550 kg
3417.17 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 75 kg
165.35 lbs.
Dimensions
Length 4797 mm
188.86 in.
Width 1783 mm
70.2 in.
Height 1440 mm
56.69 in.
Wheelbase 2692 mm
105.98 in.
Front track 1520 mm
59.84 in.
Rear (Back) track 1524 mm
60 in.
Minimum turning circle (turning diameter) 11.4 m
37.4 ft.
Drivetrain, brakes and suspension specs
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Semi-independent, coil spring
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 195/65 R15
Wheel rims size 6J x 15
