Specifications: Audi A6 Avant (C8, facelift 2023) 45 TDI V6 (245 Hp) Mild Hybrid quattro ultra S tronic 2023, 2024, 2025

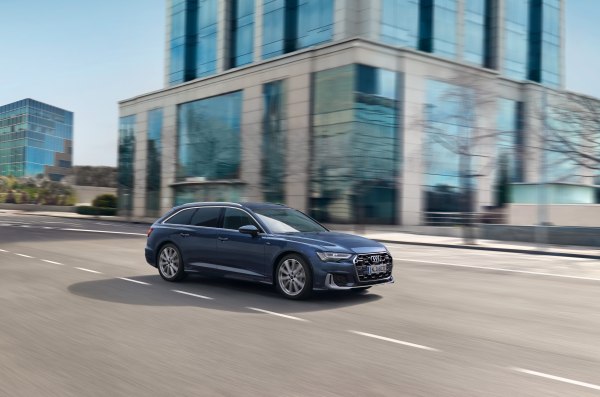

2024 Audi A6 Avant (C8, facelift 2023) - Photo 1

Audi A6 Avant (C8, facelift 2023) 45 TDI V6 (245 Hp) Mild Hybrid quattro ultra S tronic – Full specifications
General information
Brand Audi
Model A6
Generation A6 Avant (C8, facelift 2023)
Modification (Engine) 45 TDI V6 (245 Hp) Mild Hybrid quattro ultra S tronic
Start of production June, 2023 year
End of production March, 2025 year
Powertrain Architecture MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV)
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Combined fuel consumption (WLTP) 6.4-7.1 l/100 km
36.8 – 33.1 US mpg
44.1 – 39.8 UK mpg
15.6 – 14.1 km/l
CO2 emissions (WLTP) 167-186 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 6.4 sec
Acceleration 0 – 62 mph 6.4 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 6.1 sec
Maximum speed 250 km/h, Electronically limited
155.34 mph
Emission standard Euro 6e
Weight-to-power ratio 7.7 kg/Hp, 129.6 Hp/tonne
Weight-to-torque ratio 3.8 kg/Nm, 264.6 Nm/tonne
Electric cars and hybrids specs
Gross battery capacity 0.5 kWh
Battery voltage 48 V
Battery technology Lithium-ion (Li-Ion)
Battery weight 10 kg
22.05 lbs.
Battery location Under the trunk
Recuperation output 14 kW
Electric motor 1
Electric motor power 8 Hp
Electric motor Torque 60 Nm

44.25 lb.-ft.
Electric motor location Front, Longitudinal
Internal combustion engine specs
Power 245 Hp @ 3500-4750 rpm.
Power per litre 82.6 Hp/l
Torque 500 Nm @ 1500-3250 rpm.
368.78 lb.-ft. @ 1500-3250 rpm.
Engine layout Front, Longitudinal
Engine Model/Code EA897evo3
Engine displacement 2967 cm3
181.06 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 83 mm
3.27 in.
Piston Stroke 91.4 mm
3.6 in.
Compression ratio 16.3:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 6.1 l
6.45 US qt | 5.37 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 15.7 l
16.59 US qt | 13.81 UK qt
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1890 kg
4166.74 lbs.
Max. weight 2550-2570 kg
5621.79 – 5665.88 lbs.
Max load 660-680 kg
1455.05 – 1499.14 lbs.
Trunk (boot) space – minimum 550 l
19.42 cu. ft.
Trunk (boot) space – maximum 1660 l
58.62 cu. ft.
Fuel tank capacity 63 l
16.64 US gal | 13.86 UK gal
AdBlue tank 12 l
3.17 US gal | 2.64 UK gal
Max. roof load 100 kg
220.46 lbs.
Permitted trailer load with brakes (8%) 2000 kg
4409.25 lbs.
Permitted trailer load with brakes (12%) 2000 kg
4409.25 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 95 kg
209.44 lbs.
Dimensions
Length 4939 mm
194.45 in.
Width 1886 mm
74.25 in.
Width including mirrors 2110 mm
83.07 in.
Height 1494 mm
58.82 in.
Wheelbase 2924 mm
115.12 in.
Front track 1630 mm
64.17 in.
Rear (Back) track 1617 mm
63.66 in.
Front overhang 920 mm
36.22 in.
Rear overhang 1095 mm
43.11 in.
Drag coefficient (Cd) 0.29
Minimum turning circle (turning diameter) 12.1 m
39.7 ft.
Approach angle 13.7°
Departure angle 16.9°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and the electric motor permanently drive the front wheels of the vehicle, capable of running only in mixed mode, and if necessary through the electrically or mechanically controlled clutch, the rear wheels are driven.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 7 gears, automatic transmission S tronic
Front suspension Independent multi-link suspension
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs, 338 mm
Rear brakes Ventilated discs, 330 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 225/60 R17; 225/55 R18; 245/45 R19; 255/40 R20; 255/35 R21
Wheel rims size 7.5J x 17; 8J x 18; 8.5J x 19; 8.5J x 20; 8.5J x 21
