Specifications: Audi A7 Sportback (C8, facelift 2023) 50 TDI V6 (286 Hp) Mild Hybrid quattro tiptronic 2023, 2024, 2025

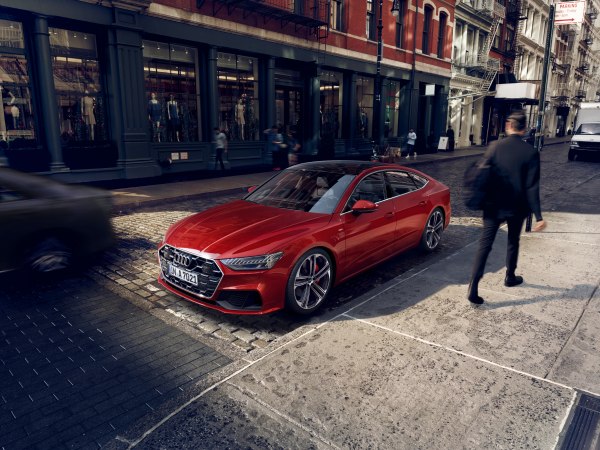

2024 Audi A7 Sportback (C8, facelift 2023) - Photo 1

Audi A7 Sportback (C8, facelift 2023) 50 TDI V6 (286 Hp) Mild Hybrid quattro tiptronic – Full specifications
General information
Brand Audi
Model A7
Generation A7 Sportback (C8, facelift 2023)
Modification (Engine) 50 TDI V6 (286 Hp) Mild Hybrid quattro tiptronic
Start of production June, 2023 year
End of production March, 2025 year
Powertrain Architecture MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV)
Body type Liftback
Seats 5
Doors 5
Performance specs
Combined fuel consumption (WLTP) 6.4-7 l/100 km
36.8 – 33.6 US mpg
44.1 – 40.4 UK mpg
15.6 – 14.3 km/l
CO2 emissions (WLTP) 167-184 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 5.6 sec
Acceleration 0 – 62 mph 5.6 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 5.3 sec
Maximum speed 250 km/h, Electronically limited
155.34 mph
Emission standard Euro 6e
Weight-to-power ratio 6.6 kg/Hp, 152.1 Hp/tonne
Weight-to-torque ratio 3 kg/Nm, 329.8 Nm/tonne
Electric cars and hybrids specs
Net (usable) battery capacity 0.5 kWh
Battery voltage 48 V
Battery technology Lithium-ion (Li-Ion)
Battery weight 10 kg
22.05 lbs.
Battery location Under the trunk
Recuperation output 14 kW
Electric motor 1
Electric motor power 8 Hp
Electric motor Torque 60 Nm

44.25 lb.-ft.
Electric motor location Front, Longitudinal
Internal combustion engine specs
Power 286 Hp @ 3500-4000 rpm.
Power per litre 96.4 Hp/l
Torque 620 Nm @ 1750-3000 rpm.
457.29 lb.-ft. @ 1750-3000 rpm.
Engine layout Front, Longitudinal
Engine Model/Code EA897evo3 / DMGA
Engine displacement 2967 cm3
181.06 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 83 mm
3.27 in.
Piston Stroke 91.4 mm
3.6 in.
Compression ratio 16.3:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 6.1 l
6.45 US qt | 5.37 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 15.7 l
16.59 US qt | 13.81 UK qt
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1880 kg
4144.69 lbs.
Max. weight 2535 kg
5588.72 lbs.
Max load 655 kg
1444.03 lbs.
Trunk (boot) space – minimum 525 l
18.54 cu. ft.
Trunk (boot) space – maximum 1380 l
48.73 cu. ft.
Fuel tank capacity 63 l
16.64 US gal | 13.86 UK gal
AdBlue tank 22 l
5.81 US gal | 4.84 UK gal
Max. roof load 90 kg
198.42 lbs.
Permitted trailer load with brakes (8%) 2000 kg
4409.25 lbs.
Permitted trailer load with brakes (12%) 2000 kg
4409.25 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 95 kg
209.44 lbs.
Dimensions
Length 4969 mm
195.63 in.
Width 1908 mm
75.12 in.
Width including mirrors 2118 mm
83.39 in.
Height 1422 mm
55.98 in.
Wheelbase 2926 mm
115.2 in.
Front track 1651 mm
65 in.
Rear (Back) track 1637 mm
64.45 in.
Front overhang 927 mm
36.5 in.
Rear overhang 1116 mm
43.94 in.
Drag coefficient (Cd) 0.27
Minimum turning circle (turning diameter) 12.4 m
40.68 ft.
Approach angle 12.2°
Departure angle 16.7°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and the electric motor permanently drive the four wheels of the car with the ability to work only in mixed mode.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 8 gears, automatic transmission tiptronic
Front suspension Independent multi-link suspension
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs, 350 mm
Rear brakes Ventilated discs, 330 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 225/55 R18; 245/45 R19; 255/40 R20; 255/35 R21
Wheel rims size 8J x 18; 8.5J x 19; 8.5J x 20; 8.5J x 21
