Specifications: Audi A8L (D5, facelift 2021) 60 TFSI e V6 (462 Hp) Plug-in Hybrid quattro tiptronic 2022, 2023, 2024, 2025

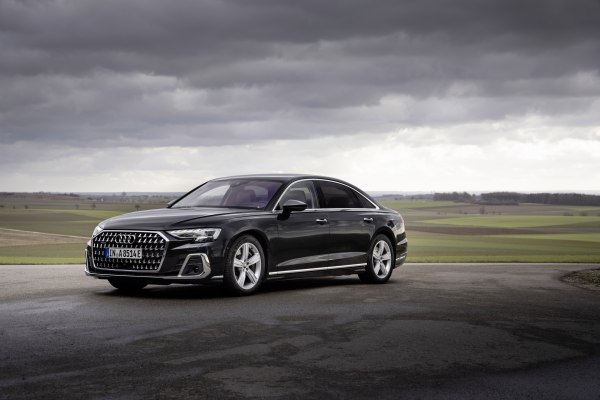

2022 Audi A8L (D5, facelift 2021) - Photo 1

Audi A8L (D5, facelift 2021) 60 TFSI e V6 (462 Hp) Plug-in Hybrid quattro tiptronic – Full specifications
General information
Brand Audi
Model A8
Generation A8L (D5, facelift 2021)
Modification (Engine) 60 TFSI e V6 (462 Hp) Plug-in Hybrid quattro tiptronic
Start of production 2022 year
Powertrain Architecture PHEV (Plug-in Hybrid Electric Vehicle)
Body type Sedan
Seats 4-5
Doors 4
Performance specs
Combined fuel consumption (WLTP) 1.8-2.2 l/100 km
130.7 – 106.9 US mpg
156.9 – 128.4 UK mpg
55.6 – 45.5 km/l
CO2 emissions (WLTP) 40-49 g/km
Fuel Type Petrol / electricity
Acceleration 0 – 100 km/h 4.9 sec
Acceleration 0 – 62 mph 4.9 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 4.7 sec
Maximum speed 250 km/h, Electronically limited
155.34 mph
Emission standard Euro 6d-ISC-FCM
Weight-to-power ratio 5.1 kg/Hp, 197.4 Hp/tonne
Weight-to-torque ratio 3.3 kg/Nm, 299.1 Nm/tonne
Electric cars and hybrids specs
Gross battery capacity 17.9 kWh
Net (usable) battery capacity 14.4 kWh
Battery voltage 400 V
Battery technology Lithium-ion (Li-Ion)
Battery location Under the trunk
All-electric range (WLTP) 54-60 km
33.55 – 37.28 mi
Average Energy consumption (WLTP) 22-23.8 kWh/100 km

35.41 – 38.3 kWh/100 mi
95 – 88 MPGe
4.5 – 4.2 km/kWh
2.8 – 2.6 mi/kWh
Max speed (electric) 135 km/h

83.89 mph
Charging ports Log in to see.Log in to see.
Electric motor 1
Electric motor power 136 Hp
Electric motor Torque 400 Nm

295.02 lb.-ft.
Electric motor location Between the combustion engine and the transmission
Electric motor type Synchronous
System power 462 Hp
System torque 700 Nm
516.29 lb.-ft.
Internal combustion engine specs
Power 340 Hp @ 5000-6400 rpm.
Power per litre 113.5 Hp/l
Torque 500 Nm @ 1370-4500 rpm.
368.78 lb.-ft. @ 1370-4500 rpm.
Engine layout Front, Longitudinal
Engine Model/Code EA839 / CZSE
Engine displacement 2995 cm3
182.77 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 84.5 mm
3.33 in.
Piston Stroke 89 mm
3.5 in.
Compression ratio 11.2:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 7.6 l
8.03 US qt | 6.69 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 19.6 l
20.71 US qt | 17.25 UK qt
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 2340 kg
5158.82 lbs.
Max. weight 2950 kg
6503.64 lbs.
Max load 610 kg
1344.82 lbs.
Trunk (boot) space – minimum 390 l
13.77 cu. ft.
Fuel tank capacity 65 l
17.17 US gal | 14.3 UK gal
Max. roof load 75 kg
165.35 lbs.
Permitted trailer load with brakes (8%) 2300 kg
5070.63 lbs.
Permitted trailer load with brakes (12%) 2300 kg
5070.63 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 95 kg
209.44 lbs.
Dimensions
Length 5320 mm
209.45 in.
Width 1945 mm
76.57 in.
Width including mirrors 2130 mm
83.86 in.
Height 1486 mm
58.5 in.
Wheelbase 3128 mm
123.15 in.
Front track 1635 mm
64.37 in.
Rear (Back) track 1623 mm
63.9 in.
Front overhang 1007 mm
39.65 in.
Rear overhang 1185 mm
46.65 in.
Drag coefficient (Cd) 0.26
Minimum turning circle (turning diameter) 12.9 m
42.32 ft.
Approach angle 11°
Departure angle 15°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and the electric motor permanently drive the four wheels of the car with the ability to work in full electric or mixed mode.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 8 gears, automatic transmission tiptronic
Front suspension Independent multi-link suspension, Air suspension
Rear suspension Independent multi-link suspension, Air suspension
Front brakes Ventilated discs, 400 mm
Rear brakes Ventilated discs, 350 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 255/45 R19; 265/40 R20; 265/35 R21
Wheel rims size 9J x 19; 9J x 20; 9J x 21
