Specifications: Audi Cabriolet (B3 8G) 2.6 V6 (150 Hp) Automatic 1994, 1995, 1996

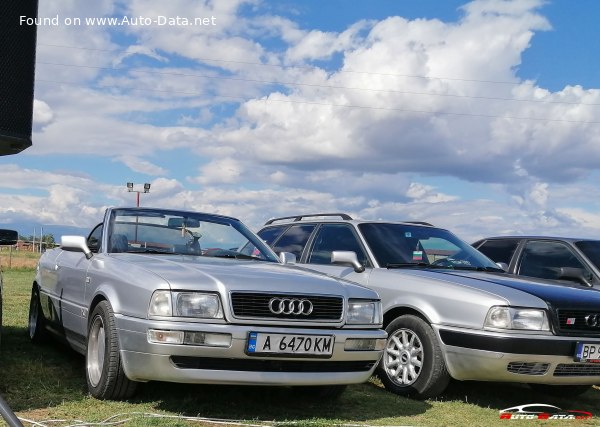

1992 Audi Cabriolet (B3 8G) - Photo 1

Audi Cabriolet (B3 8G) 2.6 V6 (150 Hp) Automatic – Full specifications
General information
Brand Audi
Model Cabriolet
Generation Cabriolet (B3 8G)
Modification (Engine) 2.6 V6 (150 Hp) Automatic
Start of production January, 1994 year
End of production 1996 year
Powertrain Architecture Internal Combustion engine
Body type Cabriolet
Seats 4
Doors 2
Performance specs
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 11.4 sec
Acceleration 0 – 62 mph 11.4 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 10.8 sec
Maximum speed 207 km/h
128.62 mph
Weight-to-power ratio 9.7 kg/Hp, 103.1 Hp/tonne
Weight-to-torque ratio 6.5 kg/Nm, 154.6 Nm/tonne
Engine specs
Power 150 Hp @ 5500 rpm.
Power per litre 57.7 Hp/l
Torque 225 Nm @ 3500 rpm.
165.95 lb.-ft. @ 3500 rpm.
Engine layout Front, Longitudinal
Engine Model/Code ABC
Engine displacement 2598 cm3
158.54 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 82.5 mm
3.25 in.
Piston Stroke 81 mm
3.19 in.
Compression ratio 10:1
Number of valves per cylinder 2
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain OHC
Engine oil capacity 5 l
5.28 US qt | 4.4 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 11 l
11.62 US qt | 9.68 UK qt

Space, Volume and weights
Kerb Weight 1455 kg
3207.73 lbs.
Max. weight 1855 kg
4089.57 lbs.
Max load 400 kg
881.85 lbs.
Trunk (boot) space – minimum 230 l
8.12 cu. ft.
Fuel tank capacity 70 l
18.49 US gal | 15.4 UK gal
Permitted trailer load with brakes (8%) 1000 kg
2204.62 lbs.
Permitted trailer load with brakes (12%) 1000 kg
2204.62 lbs.
Permitted trailer load without brakes 640 kg
1410.96 lbs.
Permitted towbar download 50 kg
110.23 lbs.
Dimensions
Length 4366 mm
171.89 in.
Width 1716 mm
67.56 in.
Height 1379 mm
54.29 in.
Wheelbase 2556 mm
100.63 in.
Front track 1453 mm
57.2 in.
Rear (Back) track 1447 mm
56.97 in.
Drag coefficient (Cd) 0.36
Minimum turning circle (turning diameter) 11.2 m
36.75 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 4 gears, automatic transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Semi-independent, coil spring
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 205/60 R15
Wheel rims size 7J x 15
