Specifications: Audi Coupe (B2 81, 85, facelift 1984) 2.2 (136 Hp) quattro 1984, 1985, 1986, 1987, 1988

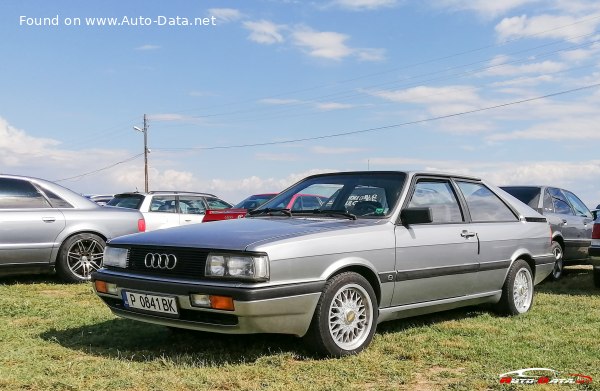

1985 Audi Coupe (B2 81, 85, facelift 1984) - Photo 1

Audi Coupe (B2 81, 85, facelift 1984) 2.2 (136 Hp) quattro – Full specifications
General information
Brand Audi
Model Coupe
Generation Coupe (B2 81, 85, facelift 1984)
Modification (Engine) 2.2 (136 Hp) quattro
Start of production August, 1984 year
End of production July, 1988 year
Powertrain Architecture Internal Combustion engine
Body type Coupe
Seats 5
Doors 2
Performance specs
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 8.9 sec
Acceleration 0 – 62 mph 8.9 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 8.5 sec
Maximum speed 202 km/h
125.52 mph
Weight-to-power ratio 8.8 kg/Hp, 113.3 Hp/tonne
Weight-to-torque ratio 6.5 kg/Nm, 155 Nm/tonne
Engine specs
Power 136 Hp @ 5700 rpm.
Power per litre 61.1 Hp/l
Torque 186 Nm @ 3500 rpm.
137.19 lb.-ft. @ 3500 rpm.
Engine layout Front, Longitudinal
Engine Model/Code KV, HY
Engine displacement 2226 cm3
135.84 cu. in.
Number of cylinders 5
Engine configuration Inline
Cylinder Bore 81 mm
3.19 in.
Piston Stroke 86.4 mm
3.4 in.
Compression ratio 10:1
Number of valves per cylinder 2
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Engine oil capacity 4 l
4.23 US qt | 3.52 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 8 l
8.45 US qt | 7.04 UK qt

Space, Volume and weights
Kerb Weight 1200 kg
2645.55 lbs.
Max. weight 1660 kg
3659.67 lbs.
Max load 460 kg
1014.13 lbs.
Trunk (boot) space – minimum 391 l
13.81 cu. ft.
Fuel tank capacity 70 l
18.49 US gal | 15.4 UK gal
Dimensions
Length 4421 mm
174.06 in.
Width 1682 mm
66.22 in.
Height 1350 mm
53.15 in.
Wheelbase 2538 mm
99.92 in.
Front track 1403 mm
55.24 in.
Rear (Back) track 1407 mm
55.39 in.
Ride height (ground clearance) 120 mm
4.72 in.
Drag coefficient (Cd) 0.36
Minimum turning circle (turning diameter) 11 m
36.09 ft.
Drivetrain, brakes and suspension specs
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 5 gears, manual transmission
Front brakes Ventilated discs
Rear brakes Disc
Tires size 185/60 R14
Wheel rims size 14
