Specifications: Audi Q5 I (8R) 2.0 TFSI (245 Hp) quattro Tiptronic 2011, 2012

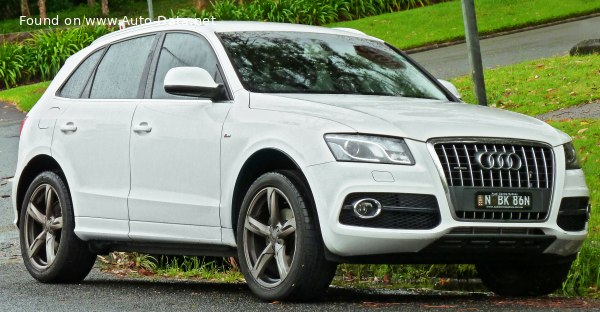

2009 Audi Q5 I (8R) - Photo 1

Audi Q5 I (8R) 2.0 TFSI (245 Hp) quattro Tiptronic – Full specifications
General information
Brand Audi
Model Q5
Generation Q5 I (8R)
Modification (Engine) 2.0 TFSI (245 Hp) quattro Tiptronic
Start of production July, 2011 year
End of production May, 2012 year
Powertrain Architecture FHEV (Full Hybrid Electric Vehicle)
Body type SUV
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 6.6 l/100 km
35.6 US mpg
42.8 UK mpg
15.2 km/l
Fuel consumption (economy) – extra urban 7.1 l/100 km
33.1 US mpg
39.8 UK mpg
14.1 km/l
Fuel consumption (economy) – combined 6.9 l/100 km
34.1 US mpg
40.9 UK mpg
14.5 km/l
CO2 emissions 159 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 7.1 sec
Acceleration 0 – 62 mph 7.1 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 6.7 sec
Maximum speed 225 km/h
139.81 mph
Emission standard Euro 5
Weight-to-power ratio 7.8 kg/Hp, 128.3 Hp/tonne
Weight-to-torque ratio 4 kg/Nm, 251.3 Nm/tonne
Electric cars and hybrids specs
Gross battery capacity 1.3 kWh
Electric motor 1
Electric motor power 54 Hp
System power 245 Hp
System torque 480 Nm
354.03 lb.-ft.
Internal combustion engine specs
Power 211 Hp @ 4300-6000 rpm.
Power per litre 106.4 Hp/l
Torque 350 Nm @ 1500-4200 rpm.
258.15 lb.-ft. @ 1500-4200 rpm.
Engine layout Front, Longitudinal
Engine Model/Code CDNC, CPMA, CADA, CAEB
Engine displacement 1984 cm3
121.07 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 82.5 mm
3.25 in.
Piston Stroke 92.8 mm
3.65 in.
Compression ratio 9.6:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 4.6 l
4.86 US qt | 4.05 UK qt
Engine oil specification Log in to see.Log in to see.

Space, Volume and weights
Kerb Weight 1910 kg
4210.83 lbs.
Max. weight 2490 kg
5489.51 lbs.
Max load 580 kg
1278.68 lbs.
Trunk (boot) space – minimum 460 l
16.24 cu. ft.
Trunk (boot) space – maximum 1480 l
52.27 cu. ft.
Fuel tank capacity 72 l
19.02 US gal | 15.84 UK gal
Max. roof load 75 kg
165.35 lbs.
Permitted trailer load with brakes (8%) 2400 kg
5291.09 lbs.
Permitted trailer load with brakes (12%) 2000 kg
4409.25 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 80 kg
176.37 lbs.
Dimensions
Length 4629 mm
182.24 in.
Width 1898 mm
74.72 in.
Width including mirrors 2089 mm
82.24 in.
Height 1653 mm
65.08 in.
Wheelbase 2807 mm
110.51 in.
Front track 1617 mm
63.66 in.
Rear (Back) track 1613 mm
63.5 in.
Front overhang 895 mm
35.24 in.
Rear overhang 927 mm
36.5 in.
Minimum turning circle (turning diameter) 11.6 m
38.06 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and the electric motor permanently drive the four wheels of the car with the ability to work in full electric or mixed mode.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 8 gears, automatic transmission Tiptronic
Front suspension Independent multi-link suspension
Rear suspension Independent on trapezoidal lever
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 235/55 R19
Wheel rims size 8.0J x 19
