Specifications: Audi Q5 I (8R, facelift 2012) 2.0 TFSI (211 Hp) quattro Tiptronic 2012, 2013

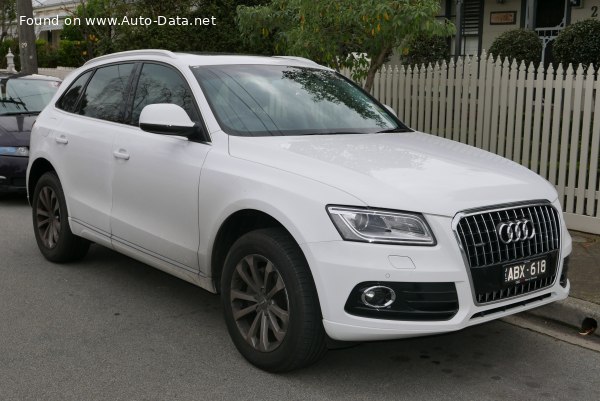

2013 Audi Q5 I (8R, facelift 2012) - Photo 1

Audi Q5 I (8R, facelift 2012) 2.0 TFSI (211 Hp) quattro Tiptronic – Full specifications
General information
Brand Audi
Model Q5
Generation Q5 I (8R, facelift 2012)
Modification (Engine) 2.0 TFSI (211 Hp) quattro Tiptronic
Start of production October, 2012 year
End of production 2013 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban (EPA) 11.8 l/100 km
19.9 US mpg
23.9 UK mpg
8.5 km/l
Fuel consumption (economy) – extra urban (EPA) 8.4 l/100 km
28 US mpg
33.6 UK mpg
11.9 km/l
Fuel consumption (economy) – combined (EPA) 10.2 l/100 km
23.1 US mpg
27.7 UK mpg
9.8 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 60 mph 7 sec
Maximum speed 209 km/h, Electronically limited
129.87 mph
Emission standard ULEV II
Weight-to-power ratio 8.8 kg/Hp, 114.1 Hp/tonne
Weight-to-torque ratio 5.3 kg/Nm, 189.2 Nm/tonne
Engine specs
Power 211 Hp @ 4300 rpm.
Power per litre 106.4 Hp/l
Torque 350 Nm @ 1500 rpm.
258.15 lb.-ft. @ 1500 rpm.
Engine layout Front, Longitudinal
Engine Model/Code EA888 / CPMA
Engine displacement 1984 cm3
121.07 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 82.5 mm
3.25 in.
Piston Stroke 92.8 mm
3.65 in.
Compression ratio 9.6:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 4.6 l
4.86 US qt | 4.05 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 10 l
10.57 US qt | 8.8 UK qt

Space, Volume and weights
Kerb Weight 1850 kg
4078.55 lbs.
Trunk (boot) space – minimum 540 l
19.07 cu. ft.
Trunk (boot) space – maximum 1560 l
55.09 cu. ft.
Fuel tank capacity 75 l
19.81 US gal | 16.5 UK gal
Permitted trailer load with brakes (12%) 1996 kg
4400.43 lbs.
Dimensions
Length 4639 mm
182.64 in.
Width 1898 mm
74.72 in.
Width including mirrors 2089 mm
82.24 in.
Height 1655 mm
65.16 in.
Wheelbase 2807 mm
110.51 in.
Front track 1617 mm
63.66 in.
Rear (Back) track 1614 mm
63.54 in.
Ride height (ground clearance) 200 mm
7.87 in.
Drag coefficient (Cd) 0.33
Minimum turning circle (turning diameter) 11.6 m
38.06 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives permanently the four wheels of the vehicle.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 8 gears, automatic transmission Tiptronic
Front suspension Coil spring, Independent multi-link suspension, Transverse stabilizer
Rear suspension Independent on trapezoidal lever, Transverse stabilizer, Coil spring
Front brakes Ventilated discs, 320 mm
Rear brakes Disc, 300 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 235/60 R18; 235/55 R19; 255/45 R20
Wheel rims size 8J x 18; 8J x 19; 8.5J x 20
