Specifications: Audi Q5 II (FY, facelift 2020) 40 TDI (204 Hp) Mild Hybrid quattro ultra S tronic 2020, 2021, 2022, 2023, 2024

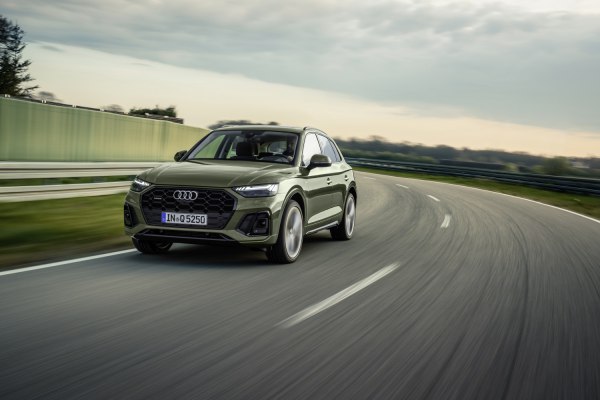

2021 Audi Q5 II (FY, facelift 2020) - Photo 1

Audi Q5 II (FY, facelift 2020) 40 TDI (204 Hp) Mild Hybrid quattro ultra S tronic – Full specifications
General information
Brand Audi
Model Q5
Generation Q5 II (FY, facelift 2020)
Modification (Engine) 40 TDI (204 Hp) Mild Hybrid quattro ultra S tronic
Start of production June, 2020 year
End of production September, 2024 year
Powertrain Architecture MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV)
Body type SUV
Seats 5
Doors 5
Performance specs
Combined fuel consumption (WLTP) 6.3-6.9 l/100 km
37.3 – 34.1 US mpg
44.8 – 40.9 UK mpg
15.9 – 14.5 km/l
CO2 emissions (WLTP) 164-181 g/km
Fuel consumption (economy) – urban (NEDC) 6.1 l/100 km
38.6 US mpg
46.3 UK mpg
16.4 km/l
Fuel consumption (economy) – extra urban (NEDC) 4.8-5.0 l/100 km
49 – 47 US mpg
58.9 – 56.5 UK mpg
20.8 – 20 km/l
Fuel consumption (economy) – combined (NEDC) 5.3-5.4 l/100 km
44.4 – 43.6 US mpg
53.3 – 52.3 UK mpg
18.9 – 18.5 km/l
CO2 emissions (NEDC) 139-143 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 7.6 sec
Acceleration 0 – 62 mph 7.6 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 7.2 sec
Maximum speed 222 km/h
137.94 mph
Emission standard EURO 6d – ISC – FCM
Weight-to-power ratio 8.8 kg/Hp, 113 Hp/tonne
Weight-to-torque ratio 4.5 kg/Nm, 221.6 Nm/tonne
Engine specs
Power 204 Hp @ 3800-4200 rpm.
Power per litre 103.7 Hp/l
Torque 400 Nm @ 1750-3250 rpm.
295.02 lb.-ft. @ 1750-3250 rpm.
Engine layout Front, Longitudinal
Engine Model/Code DTPA
Engine displacement 1968 cm3
120.09 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 81 mm
3.19 in.
Piston Stroke 95.5 mm
3.76 in.
Compression ratio 15.5:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Engine oil capacity 5.5 l
5.81 US qt | 4.84 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 12.3 l
13 US qt | 10.82 UK qt
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1805 kg
3979.34 lbs.
Max. weight 2510 kg
5533.6 lbs.
Max load 705 kg
1554.26 lbs.
Trunk (boot) space – minimum 520 l
18.36 cu. ft.
Trunk (boot) space – maximum 1520 l
53.68 cu. ft.
Fuel tank capacity 65 l
17.17 US gal | 14.3 UK gal
AdBlue tank 12 l
3.17 US gal | 2.64 UK gal
Max. roof load 75 kg
165.35 lbs.
Permitted trailer load with brakes (8%) 2400 kg
5291.09 lbs.
Permitted trailer load with brakes (12%) 2400 kg
5291.09 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 100 kg
220.46 lbs.
Dimensions
Length 4682 mm
184.33 in.
Width 1893 mm
74.53 in.
Width including mirrors 2140 mm
84.25 in.
Height 1662 mm
65.43 in.
Wheelbase 2819 mm
110.98 in.
Front track 1616 mm
63.62 in.
Rear (Back) track 1609 mm
63.35 in.
Front overhang 910 mm
35.83 in.
Rear overhang 953 mm
37.52 in.
Drag coefficient (Cd) 0.30
Minimum turning circle (turning diameter) 11.8 m
38.71 ft.
Approach angle 18.30°
Departure angle 21.30°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and the electric motor permanently drive the front wheels of the vehicle, capable of running only in mixed mode, and if necessary through the electrically or mechanically controlled clutch, the rear wheels are driven.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 7 gears, automatic transmission S tronic
Front suspension Independent multi-link suspension
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 235/65 R 17 104 W
Wheel rims size 8.0J x 17
