Specifications: Audi Q5 II Sportback (FY, facelift 2020) 50 TDI V6 (286 Hp) Mild Hybrid quattro tiptronic 2020, 2021, 2022, 2023, 2024

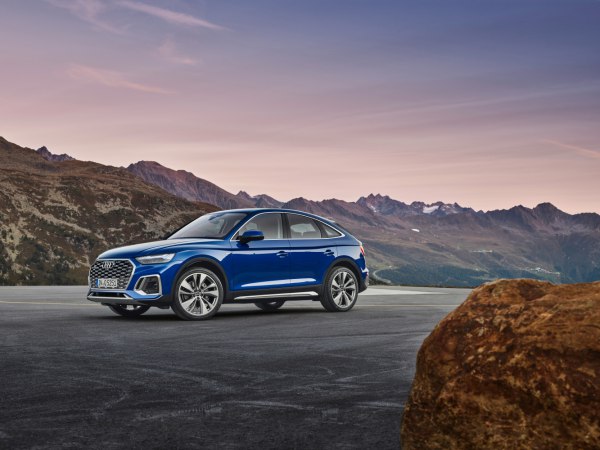

2021 Audi Q5 II Sportback (FY, facelift 2020) - Photo 1

Audi Q5 II Sportback (FY, facelift 2020) 50 TDI V6 (286 Hp) Mild Hybrid quattro tiptronic – Full specifications
General information
Brand Audi
Model Q5
Generation Q5 II Sportback (FY, facelift 2020)
Modification (Engine) 50 TDI V6 (286 Hp) Mild Hybrid quattro tiptronic
Start of production 2020 year
End of production November, 2024 year
Powertrain Architecture MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV)
Body type SUV
Seats 5
Doors 5
Performance specs
Combined fuel consumption (WLTP) 8.0-8.7 l/100 km
29.4 – 27 US mpg
35.3 – 32.5 UK mpg
12.5 – 11.5 km/l
CO2 emissions (WLTP) 210-228 g/km
Fuel consumption (economy) – urban (NEDC) 8.4-8.5 l/100 km
28 – 27.7 US mpg
33.6 – 33.2 UK mpg
11.9 – 11.8 km/l
Fuel consumption (economy) – extra urban (NEDC) 5.7-5.9 l/100 km
41.3 – 39.9 US mpg
49.6 – 47.9 UK mpg
17.5 – 16.9 km/l
Fuel consumption (economy) – combined (NEDC) 6.7-6.9 l/100 km
35.1 – 34.1 US mpg
42.2 – 40.9 UK mpg
14.9 – 14.5 km/l
CO2 emissions (NEDC) 176-182 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 5.7 sec
Acceleration 0 – 62 mph 5.7 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 5.4 sec
Maximum speed 240 km/h
149.13 mph
Emission standard Euro 6d-ISC-FCM
Weight-to-power ratio 6.8 kg/Hp, 146.3 Hp/tonne
Weight-to-torque ratio 3.2 kg/Nm, 317.1 Nm/tonne
Engine specs
Power 286 Hp @ 3500-4000 rpm.
Power per litre 96.4 Hp/l
Torque 620 Nm @ 1750-3000 rpm.
457.29 lb.-ft. @ 1750-3000 rpm.
Engine layout Front, Longitudinal
Engine Model/Code EA897evo3 / DMGA
Engine displacement 2967 cm3
181.06 cu. in.
Number of cylinders 6
Engine configuration V-engine
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Engine oil capacity 6.1 l
6.45 US qt | 5.37 UK qt
Engine oil specification Log in to see.Log in to see.
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1955 kg
4310.04 lbs.
Trunk (boot) space – minimum 510 l
18.01 cu. ft.
Trunk (boot) space – maximum 1480 l
52.27 cu. ft.
Fuel tank capacity 70 l
18.49 US gal | 15.4 UK gal
Max. roof load 75 kg
165.35 lbs.
Permitted trailer load with brakes (12%) 2400 kg
5291.09 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 100 kg
220.46 lbs.
Dimensions
Length 4689 mm
184.61 in.
Width 1893 mm
74.53 in.
Width including mirrors 2140 mm
84.25 in.
Height 1660 mm
65.35 in.
Wheelbase 2819 mm
110.98 in.
Front track 1616 mm
63.62 in.
Rear (Back) track 1609 mm
63.35 in.
Front overhang 910 mm
35.83 in.
Rear overhang 960 mm
37.8 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and the electric motor permanently drive the four wheels of the car with the ability to work only in mixed mode.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 8 gears, automatic transmission tiptronic
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 235/60 R18
Wheel rims size 8J x 18
