Specifications: Audi Q5 III Sportback (GU) 2.0 TFSI (204 Hp) Mild Hybrid plus S tronic 2024, 2025

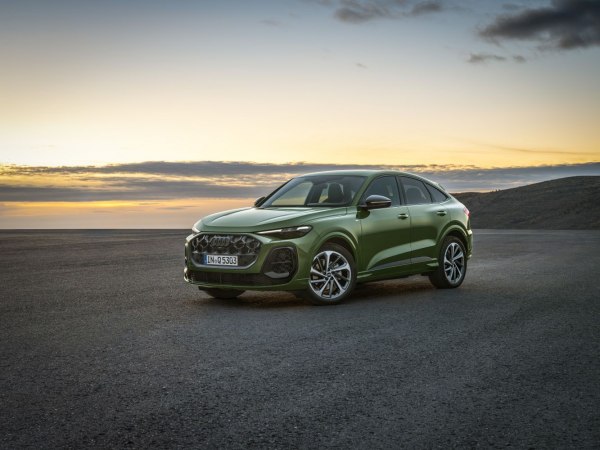

2025 Audi Q5 III Sportback (GU) - Photo 1

Audi Q5 III Sportback (GU) 2.0 TFSI (204 Hp) Mild Hybrid plus S tronic – Full specifications
General information
Brand Audi
Model Q5
Generation Q5 III Sportback (GU)
Modification (Engine) 2.0 TFSI (204 Hp) Mild Hybrid plus S tronic
Start of production November, 2024 year
Powertrain Architecture MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV)
Body type SUV
Seats 5
Doors 5
Performance specs
Combined fuel consumption (WLTP) 7.1-7.4 l/100 km
33.1 – 31.8 US mpg
39.8 – 38.2 UK mpg
14.1 – 13.5 km/l
CO2 emissions (WLTP) 148-169 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 8.6 sec
Acceleration 0 – 62 mph 8.6 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 8.2 sec
Maximum speed 226 km/h
140.43 mph
Emission standard Euro 6e
Weight-to-power ratio 9.1 kg/Hp, 110.3 Hp/tonne
Weight-to-torque ratio 5.4 kg/Nm, 183.8 Nm/tonne
Electric cars and hybrids specs
Gross battery capacity 1.7 kWh
Battery voltage 48 V
Battery technology Lithium iron phosphate (LiFePO4)
Battery location Under the trunk
Recuperation output 25 kW
Electric motor 1
Electric motor power 24 Hp
Electric motor Torque 230 Nm

169.64 lb.-ft.
Electric motor location Middle, Longitudinal
Internal combustion engine specs
Power 204 Hp @ 4300-6000 rpm.
Power per litre 102.8 Hp/l
Torque 340 Nm @ 2000-4000 rpm.
250.77 lb.-ft. @ 2000-4000 rpm.
Engine layout Front, Longitudinal
Engine Model/Code DXA
Engine displacement 1984 cm3
121.07 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 82.5 mm
3.25 in.
Piston Stroke 92.8 mm
3.65 in.
Compression ratio 12.5:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 6 l
6.34 US qt | 5.28 UK qt
Coolant 17.4 l
18.39 US qt | 15.31 UK qt
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1850 kg
4078.55 lbs.
Max. weight 2460 kg
5423.37 lbs.
Max load 610 kg
1344.82 lbs.
Trunk (boot) space – minimum 515 l
18.19 cu. ft.
Trunk (boot) space – maximum 1415 l
49.97 cu. ft.
Fuel tank capacity 65 l
17.17 US gal | 14.3 UK gal
Max. roof load 75 kg
165.35 lbs.
Permitted trailer load with brakes (8%) 2000 kg
4409.25 lbs.
Permitted trailer load with brakes (12%) 2000 kg
4409.25 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 100 kg
220.46 lbs.
Dimensions
Length 4717 mm
185.71 in.
Width 1900 mm
74.8 in.
Width including mirrors 2155 mm
84.84 in.
Height 1619-1656 mm
63.74 – 65.2 in.
Wheelbase 2823 mm
111.14 in.
Front track 1621 mm
63.82 in.
Rear (Back) track 1613 mm
63.5 in.
Drag coefficient (Cd) 0.31
Minimum turning circle (turning diameter) 11.8 m
38.71 ft.
Approach angle 16.6°
Departure angle 24.5°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and electric motor drive the front wheels of the car with the ability to work in full electric or mixed mode.
Drive wheel Front wheel drive
Number of gears and type of gearbox 7 gears, automatic transmission S tronic
Front suspension Independent multi-link suspension
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs, 338 mm
Rear brakes Disc, 330 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 235/60 R18; 235/55 R19; 255/45 R20; 255/40 R21
Wheel rims size 8.0J x 18; 8.0J x 19; 8.0J x 20; 8.5J x 21
