Specifications: Audi R8 II Coupe (4S, facelift 2019) 5.2 FSI V10 (540 Hp) RWD S tronic 2020, 2021

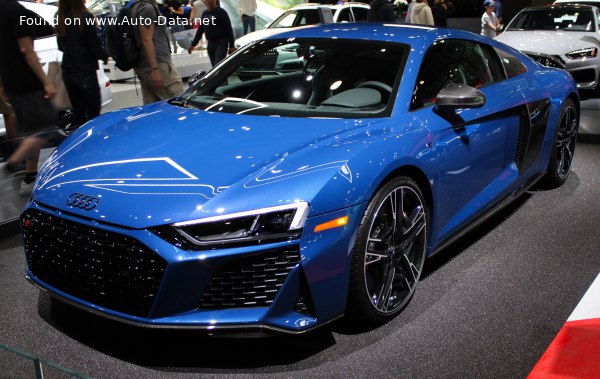

2019 Audi R8 II Coupe (4S, facelift 2019) - Photo 1

Audi R8 II Coupe (4S, facelift 2019) 5.2 FSI V10 (540 Hp) RWD S tronic – Full specifications
General information
Brand Audi
Model R8
Generation R8 II Coupe (4S, facelift 2019)
Modification (Engine) 5.2 FSI V10 (540 Hp) RWD S tronic
Start of production January, 2020 year
End of production July, 2021 year
Powertrain Architecture Internal Combustion engine
Body type Coupe
Seats 2
Doors 2
Performance specs
Fuel consumption at Low speed (WLTP) 23 l/100 km
10.23 US mpg
12.28 UK mpg
4.35 km/l
Fuel consumption at Medium speed (WLTP) 12.8 l/100 km
18.38 US mpg
22.07 UK mpg
7.81 km/l
Fuel consumption at high speed (WLTP) 10.7 l/100 km
21.98 US mpg
26.4 UK mpg
9.35 km/l
Fuel consumption at very high speed (WLTP) 10.6 l/100 km
22.19 US mpg
26.65 UK mpg
9.43 km/l
Combined fuel consumption (WLTP) 12.7 l/100 km
18.52 US mpg
22.24 UK mpg
7.87 km/l
CO2 emissions (WLTP) 289 g/km
Fuel consumption (economy) – urban (NEDC, WLTP equivalent) 19.5-20.2 l/100 km
12.06 – 11.64 US mpg
14.49 – 13.98 UK mpg
5.13 – 4.95 km/l
Fuel consumption (economy) – extra urban (NEDC, WLTP equivalent) 8.9-9 l/100 km
26.43 – 26.13 US mpg
31.74 – 31.39 UK mpg
11.24 – 11.11 km/l
Fuel consumption (economy) – combined (NEDC, WLTP equivalent) 12.9-13.1 l/100 km
18.23 – 17.96 US mpg
21.9 – 21.56 UK mpg
7.75 – 7.63 km/l
CO2 emissions (NEDC, WLTP equivalent) 293-300 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 3.7 sec
Acceleration 0 – 62 mph 3.7 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 3.5 sec
Maximum speed 324 km/h
201.32 mph
Emission standard Euro 6d-ISC-FCM
Weight-to-power ratio 2.9 kg/Hp, 340.7 Hp/tonne
Weight-to-torque ratio 2.9 kg/Nm, 340.7 Nm/tonne
Engine specs
Power 540 Hp @ 7900 rpm.
Power per litre 103.8 Hp/l
Torque 540 Nm @ 6400 rpm.
398.28 lb.-ft. @ 6400 rpm.
Engine layout Middle, Longitudinal
Engine Model/Code DKAB
Engine displacement 5204 cm3
317.57 cu. in.
Number of cylinders 10
Engine configuration V-engine
Cylinder Bore 84.5 mm
3.33 in.
Piston Stroke 92.8 mm
3.65 in.
Number of valves per cylinder 4
Fuel injection system Direct injection and Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 8.3 l
8.77 US qt | 7.3 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 24.7 l
26.1 US qt | 21.73 UK qt
Engine systems Start & Stop System
Cylinder deactivation system
Particulate filter

Space, Volume and weights
Kerb Weight 1585 kg
3494.33 lbs.
Max. weight 1895 kg
4177.76 lbs.
Max load 310 kg
683.43 lbs.
Trunk (boot) space – minimum 112 l
3.96 cu. ft.
Fuel tank capacity 83 l
21.93 US gal | 18.26 UK gal
Dimensions
Length 4429 mm
174.37 in.
Width 1940 mm
76.38 in.
Width including mirrors 2037 mm
80.2 in.
Height 1236 mm
48.66 in.
Wheelbase 2650 mm
104.33 in.
Front track 1645 mm
64.76 in.
Rear (Back) track 1599 mm
62.95 in.
Front overhang 993 mm
39.09 in.
Rear overhang 786 mm
30.94 in.
Drag coefficient (Cd) 0.36
Minimum turning circle (turning diameter) 11.2 m
36.75 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 7 gears, automatic transmission S tronic
Front suspension Coil spring, Double wishbone, Transverse stabilizer
Rear suspension Double wishbone, Transverse stabilizer, Coil spring
Front brakes Ventilated discs, 365 mm
Rear brakes Ventilated discs, 356 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size Front wheel tires: 245/35 R19; 245/30 R20
Rear wheel tires: 295/35 R19; 305/30 R20
Wheel rims size Front wheel rims: 8.5J x 19; 8.5J x 20
Rear wheel rims: 11J x 19; 11J x 20
