Specifications: Audi RS2 Avant 2.2i (315 Hp) 1994, 1995, 1996

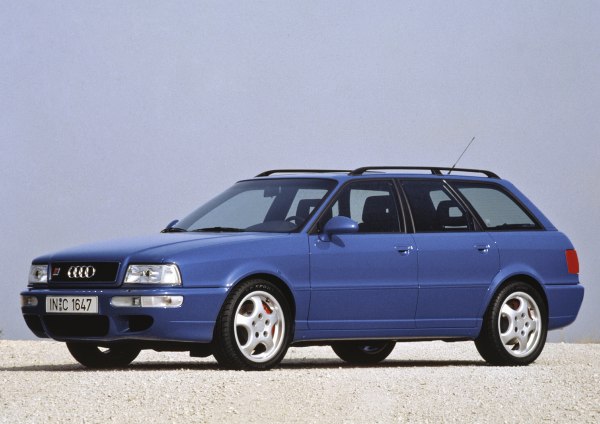

1994 Audi RS2 Avant - Photo 1

Audi RS2 Avant 2.2i (315 Hp) – Full specifications
General information
Brand Audi
Model RS2
Generation RS2 Avant
Modification (Engine) 2.2i (315 Hp)
Start of production March, 1994 year
End of production March, 1996 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 14.3 l/100 km
16.45 US mpg
19.75 UK mpg
6.99 km/l
Fuel consumption (economy) – extra urban 7.7 l/100 km
30.55 US mpg
36.69 UK mpg
12.99 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 5.4 sec
Acceleration 0 – 62 mph 5.4 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 5.1 sec
Acceleration 0 – 200 km/h 22.7 sec
Maximum speed 262 km/h
162.8 mph
Emission standard Euro 2
Weight-to-power ratio 5.1 kg/Hp, 197.5 Hp/tonne
Weight-to-torque ratio 3.9 kg/Nm, 257.1 Nm/tonne
Engine specs
Power 315 Hp @ 6500 rpm.
Power per litre 141.5 Hp/l
Torque 410 Nm @ 3000 rpm.
302.4 lb.-ft. @ 3000 rpm.
Engine layout Front, Longitudinal
Engine Model/Code ADU
Engine displacement 2226 cm3
135.84 cu. in.
Number of cylinders 5
Engine configuration Inline
Cylinder Bore 81 mm
3.19 in.
Piston Stroke 86.4 mm
3.4 in.
Compression ratio 9.3:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 4.5 l
4.76 US qt | 3.96 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 8.5 l
8.98 US qt | 7.48 UK qt

Space, Volume and weights
Kerb Weight 1595 kg
3516.37 lbs.
Max. weight 2100 kg
4629.71 lbs.
Max load 505 kg
1113.33 lbs.
Trunk (boot) space – minimum 370 l
13.07 cu. ft.
Trunk (boot) space – maximum 1200 l
42.38 cu. ft.
Fuel tank capacity 64 l
16.91 US gal | 14.08 UK gal
Max. roof load 75 kg
165.35 lbs.
Permitted trailer load with brakes (12%) 1600 kg
3527.4 lbs.
Permitted trailer load without brakes 690 kg
1521.19 lbs.
Dimensions
Length 4510 mm
177.56 in.
Width 1695 mm
66.73 in.
Height 1386 mm
54.57 in.
Wheelbase 2597 mm
102.24 in.
Front track 1448 mm
57.01 in.
Rear (Back) track 1474 mm
58.03 in.
Minimum turning circle (turning diameter) 11.2 m
36.75 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives permanently the four wheels of the vehicle.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Double wishbone, Transverse stabilizer
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 245/40 R17
Wheel rims size 7J x 17
