Specifications: Audi RS4 Avant (B9, facelift 2019) edition 25 years 2.9 TFSI V6 (470 Hp) quattro tiptronic 2024, 2025

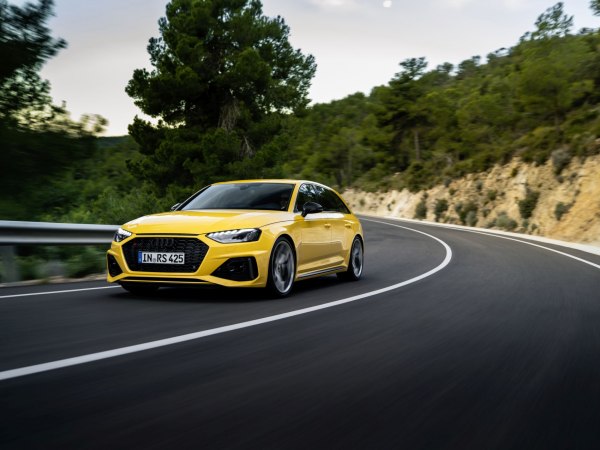

2020 Audi RS4 Avant (B9, facelift 2019) - Photo 1

Audi RS4 Avant (B9, facelift 2019) edition 25 years 2.9 TFSI V6 (470 Hp) quattro tiptronic – Full specifications
General information
Brand Audi
Model RS4
Generation RS4 Avant (B9, facelift 2019)
Modification (Engine) edition 25 years 2.9 TFSI V6 (470 Hp) quattro tiptronic
Start of production June, 2024 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – combined 9.9 l/100 km
23.76 US mpg
28.53 UK mpg
10.1 km/l
CO2 emissions 224-225 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 3.7 sec
Acceleration 0 – 62 mph 3.7 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 3.5 sec
Maximum speed 300 km/h, Electronically limited
186.41 mph
Emission standard Euro 6e
Weight-to-power ratio 3.7 kg/Hp, 269.3 Hp/tonne
Weight-to-torque ratio 2.9 kg/Nm, 343.8 Nm/tonne
Engine specs
Power 470 Hp @ 5900-6500 rpm.
Power per litre 162.4 Hp/l
Torque 600 Nm @ 2000-5000 rpm.
442.54 lb.-ft. @ 2000-5000 rpm.
Engine layout Front, Longitudinal
Engine Model/Code EA839
Engine displacement 2894 cm3
176.6 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 84.5 mm
3.33 in.
Piston Stroke 86 mm
3.39 in.
Compression ratio 10:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration BiTurbo, Intercooler
Valvetrain DOHC, Audi Valvelift System
Engine oil capacity 7.6 l
8.03 US qt | 6.69 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 14.6 l
15.43 US qt | 12.85 UK qt
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1745 kg
3847.07 lbs.
Max. weight 2275 kg
5015.52 lbs.
Max load 530 kg
1168.45 lbs.
Trunk (boot) space – minimum 495 l
17.48 cu. ft.
Trunk (boot) space – maximum 1495 l
52.8 cu. ft.
Fuel tank capacity 58 l
15.32 US gal | 12.76 UK gal
Max. roof load 90 kg
198.42 lbs.
Dimensions
Length 4781 mm
188.23 in.
Width 1866 mm
73.46 in.
Width including mirrors 2022 mm
79.61 in.
Height 1411-1448 mm
55.55 – 57.01 in.
Wheelbase 2831 mm
111.46 in.
Front track 1619 mm
63.74 in.
Rear (Back) track 1594 mm
62.76 in.
Drag coefficient (Cd) 0.33
Minimum turning circle (turning diameter) 12.5 m
41.01 ft.
Approach angle 10.3°
Departure angle 16.4°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives permanently the four wheels of the vehicle.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 8 gears, automatic transmission tiptronic
Front suspension Coil spring, Independent multi-link suspension, Transverse stabilizer
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs, 400 mm
Rear brakes Ventilated discs, 330 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 275/30 R20
Wheel rims size 9J x 20
