Specifications: Audi S4 (4A,C4) 2.2i Turbo (230 Hp) quattro Automatic 1991, 1992, 1993, 1994

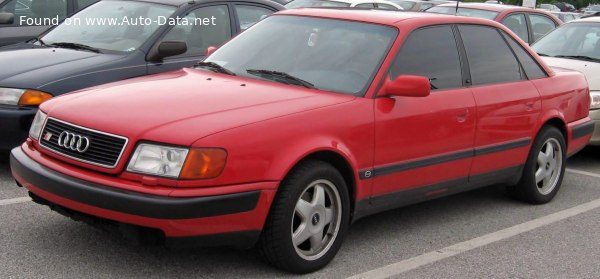

1992 Audi S4 (4A,C4) - Photo 1

Audi S4 (4A,C4) 2.2i Turbo (230 Hp) quattro Automatic – Full specifications
General information
Brand Audi
Model S4
Generation S4 (4A,C4)
Modification (Engine) 2.2i Turbo (230 Hp) quattro Automatic
Start of production August, 1991 year
End of production July, 1994 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 16.1 l/100 km
14.61 US mpg
17.55 UK mpg
6.21 km/l
Fuel consumption (economy) – extra urban 8.5 l/100 km
27.67 US mpg
33.23 UK mpg
11.76 km/l
Fuel consumption (economy) – combined 10.3 l/100 km
22.84 US mpg
27.43 UK mpg
9.71 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 8.3 sec
Acceleration 0 – 62 mph 8.3 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 7.9 sec
Maximum speed 239 km/h
148.51 mph
Weight-to-power ratio 7 kg/Hp, 142.9 Hp/tonne
Weight-to-torque ratio 4.6 kg/Nm, 217.4 Nm/tonne
Engine specs
Power 230 Hp @ 5900 rpm.
Power per litre 103.3 Hp/l
Torque 350 Nm @ 1950 rpm.
258.15 lb.-ft. @ 1950 rpm.
Engine layout Front, Transverse
Engine Model/Code AAN
Engine displacement 2226 cm3
135.84 cu. in.
Number of cylinders 5
Engine configuration Inline
Cylinder Bore 81 mm
3.19 in.
Piston Stroke 86.4 mm
3.4 in.
Compression ratio 9.3:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Turbocharger, Intercooler
Engine oil capacity 4.5 l
4.76 US qt | 3.96 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 8 l
8.45 US qt | 7.04 UK qt

Space, Volume and weights
Kerb Weight 1610 kg
3549.44 lbs.
Max. weight 2160 kg
4761.98 lbs.
Max load 550 kg
1212.54 lbs.
Trunk (boot) space – minimum 510 l
18.01 cu. ft.
Fuel tank capacity 80 l
21.13 US gal | 17.6 UK gal
Dimensions
Length 4790 mm
188.58 in.
Width 1805 mm
71.06 in.
Height 1805 mm
71.06 in.
Wheelbase 2690 mm
105.91 in.
Front track 1555 mm
61.22 in.
Rear (Back) track 1525 mm
60.04 in.
Drag coefficient (Cd) 0.3
Minimum turning circle (turning diameter) 11.4 m
37.4 ft.
Drivetrain, brakes and suspension specs
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 4 gears, automatic transmission
Front brakes Ventilated discs
Rear brakes Disc
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 215/60 R15
Wheel rims size 15
