Specifications: Audi S4 Avant (8E,B7) 4.2i V8 (344 Hp) quattro 2004, 2005, 2006, 2007, 2008

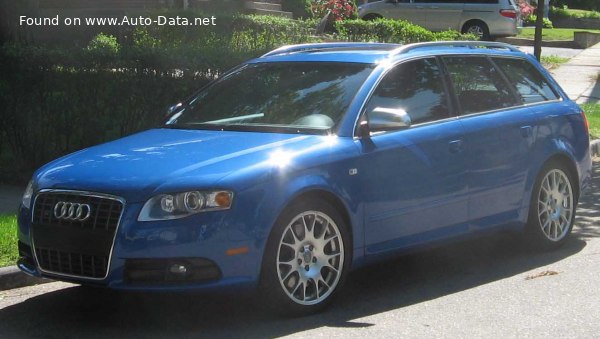

2005 Audi S4 Avant (8E,B7) - Photo 1

Audi S4 Avant (8E,B7) 4.2i V8 (344 Hp) quattro – Full specifications
General information
Brand Audi
Model S4
Generation S4 Avant (8E,B7)
Modification (Engine) 4.2i V8 (344 Hp) quattro
Start of production August, 2004 year
End of production June, 2008 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 19.6 l/100 km
12 US mpg
14.41 UK mpg
5.1 km/l
Fuel consumption (economy) – extra urban 9.8 l/100 km
24 US mpg
28.82 UK mpg
10.2 km/l
Fuel consumption (economy) – combined 13.4 l/100 km
17.55 US mpg
21.08 UK mpg
7.46 km/l
CO2 emissions 322 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 5.8 sec
Acceleration 0 – 62 mph 5.8 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 5.5 sec
Maximum speed 250 km/h
155.34 mph
Emission standard Euro 4
Weight-to-power ratio 5 kg/Hp, 200 Hp/tonne
Weight-to-torque ratio 4.2 kg/Nm, 238.4 Nm/tonne
Engine specs
Power 344 Hp @ 7000 rpm.
Power per litre 82.6 Hp/l
Torque 410 Nm @ 3500 rpm.
302.4 lb.-ft. @ 3500 rpm.
Engine layout Front, Longitudinal
Engine Model/Code BBK
Engine displacement 4163 cm3
254.04 cu. in.
Number of cylinders 8
Engine configuration V-engine
Cylinder Bore 84.5 mm
3.33 in.
Piston Stroke 92.8 mm
3.65 in.
Compression ratio 11:1
Number of valves per cylinder 5
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 9 l
9.51 US qt | 7.92 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 12 l
12.68 US qt | 10.56 UK qt

Space, Volume and weights
Kerb Weight 1720 kg
3791.95 lbs.
Max. weight 2270 kg
5004.49 lbs.
Max load 550 kg
1212.54 lbs.
Trunk (boot) space – minimum 442 l
15.61 cu. ft.
Trunk (boot) space – maximum 1354 l
47.82 cu. ft.
Fuel tank capacity 63 l
16.64 US gal | 13.86 UK gal
Max. roof load 75 kg
165.35 lbs.
Permitted trailer load with brakes (8%) 1700 kg
3747.86 lbs.
Permitted trailer load with brakes (12%) 1500 kg
3306.93 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 80 kg
176.37 lbs.
Dimensions
Length 4586 mm
180.55 in.
Width 1781 mm
70.12 in.
Height 1441 mm
56.73 in.
Wheelbase 2651 mm
104.37 in.
Front track 1516 mm
59.69 in.
Rear (Back) track 1512 mm
59.53 in.
Drag coefficient (Cd) 0.31
Minimum turning circle (turning diameter) 11.5 m
37.73 ft.
Drivetrain, brakes and suspension specs
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent multi-link suspension
Rear suspension Independent on trapezoidal lever
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 235/40 R18
Wheel rims size 8J x 18
