Specifications: Audi S4 Avant (B8) 3.0 TFSI V6 (333 Hp) quattro 2009, 2010, 2011

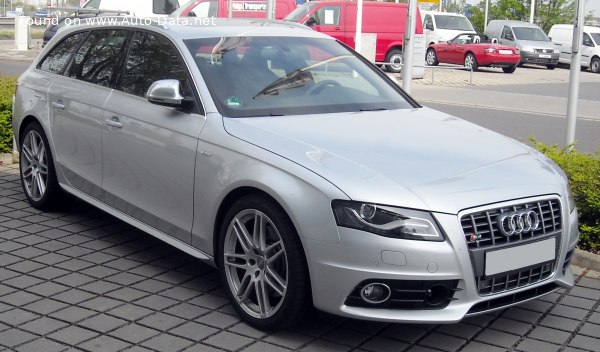

2009 Audi S4 Avant (B8) - Photo 1

Audi S4 Avant (B8) 3.0 TFSI V6 (333 Hp) quattro – Full specifications
General information
Brand Audi
Model S4
Generation S4 Avant (B8)
Modification (Engine) 3.0 TFSI V6 (333 Hp) quattro
Start of production March, 2009 year
End of production 2011 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 13.8 l/100 km
17.04 US mpg
20.47 UK mpg
7.25 km/l
Fuel consumption (economy) – extra urban 7.5 l/100 km
31.36 US mpg
37.66 UK mpg
13.33 km/l
Fuel consumption (economy) – combined 9.9 l/100 km
23.76 US mpg
28.53 UK mpg
10.1 km/l
CO2 emissions 229 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 5.2 sec
Acceleration 0 – 62 mph 5.2 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 4.9 sec
Maximum speed 250 km/h
155.34 mph
Emission standard Euro 5
Weight-to-power ratio 5.1 kg/Hp, 195.3 Hp/tonne
Weight-to-torque ratio 3.9 kg/Nm, 258.1 Nm/tonne
Engine specs
Power 333 Hp @ 5500-7000 rpm.
Power per litre 111.2 Hp/l
Torque 440 Nm @ 2900-5300 rpm.
324.53 lb.-ft. @ 2900-5300 rpm.
Engine layout Front, Longitudinal
Engine Model/Code CAKA, CCBA
Engine displacement 2995 cm3
182.77 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 84.5 mm
3.33 in.
Piston Stroke 89 mm
3.5 in.
Compression ratio 10.3:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Supercharger, Intercooler
Valvetrain DOHC
Engine oil capacity 6.2 l
6.55 US qt | 5.46 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 11.1 l
11.73 US qt | 9.77 UK qt

Space, Volume and weights
Kerb Weight 1705 kg
3758.88 lbs.
Max. weight 2275 kg
5015.52 lbs.
Max load 570 kg
1256.63 lbs.
Trunk (boot) space – minimum 490 l
17.3 cu. ft.
Trunk (boot) space – maximum 1430 l
50.5 cu. ft.
Fuel tank capacity 64 l
16.91 US gal | 14.08 UK gal
Max. roof load 90 kg
198.42 lbs.
Permitted trailer load with brakes (8%) 2100 kg
4629.71 lbs.
Permitted trailer load with brakes (12%) 1900 kg
4188.78 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 80 kg
176.37 lbs.
Dimensions
Length 4717 mm
185.71 in.
Width 1826 mm
71.89 in.
Height 1415 mm
55.71 in.
Wheelbase 2811 mm
110.67 in.
Front track 1552 mm
61.1 in.
Rear (Back) track 1539 mm
60.59 in.
Drag coefficient (Cd) 0.325
Minimum turning circle (turning diameter) 11.5 m
37.73 ft.
Drivetrain, brakes and suspension specs
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent multi-link suspension
Rear suspension Independent on trapezoidal lever
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 245/40 R18
Wheel rims size 8J x 18
