Specifications: Audi S5 Coupe (F5, facelift 2019) 3.0 TDI V6 (341 Hp) Mild Hybrid quattro tiptronic 2020, 2021, 2022, 2023

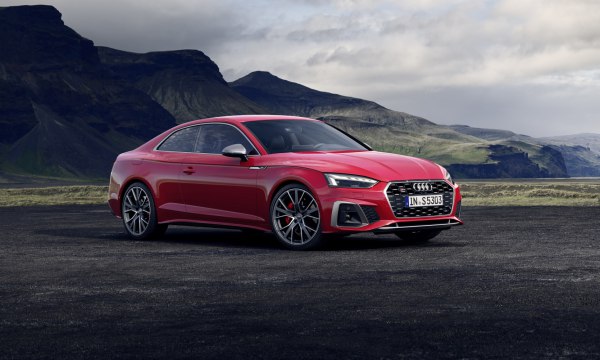

2020 Audi S5 Coupe (F5, facelift 2019) - Photo 1

Audi S5 Coupe (F5, facelift 2019) 3.0 TDI V6 (341 Hp) Mild Hybrid quattro tiptronic – Full specifications
General information
Brand Audi
Model S5
Generation S5 Coupe (F5, facelift 2019)
Modification (Engine) 3.0 TDI V6 (341 Hp) Mild Hybrid quattro tiptronic
Start of production November, 2020 year
End of production March, 2023 year
Powertrain Architecture MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV)
Body type Coupe
Seats 4
Doors 2
Performance specs
Combined fuel consumption (WLTP) 7-7.3 l/100 km
33.6 – 32.22 US mpg
40.35 – 38.7 UK mpg
14.29 – 13.7 km/l
CO2 emissions (WLTP) 182-191 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 4.6 sec
Acceleration 0 – 62 mph 4.6 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 4.4 sec
Maximum speed 250 km/h, Electronically limited
155.34 mph
Emission standard Euro 6d-ISC-FCM
Weight-to-power ratio 5.2 kg/Hp, 191 Hp/tonne
Weight-to-torque ratio 2.6 kg/Nm, 392.2 Nm/tonne
Electric cars and hybrids specs
Net (usable) battery capacity 0.5 kWh
Battery voltage 48 V
Battery technology Lithium-ion (Li-Ion)
Battery weight 10 kg
22.05 lbs.
Battery location Under the trunk
Recuperation output 8 kW
Internal combustion engine specs
Power 341 Hp @ 3800-3950 rpm.
Power per litre 114.9 Hp/l
Torque 700 Nm @ 1750-3250 rpm.
516.29 lb.-ft. @ 1750-3250 rpm.
Engine layout Front, Longitudinal
Engine Model/Code EA897evo3 / DMKC
Engine displacement 2967 cm3
181.06 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 83 mm
3.27 in.
Piston Stroke 91.4 mm
3.6 in.
Compression ratio 15.5:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger and Electric Powered Compressor, Intercooler
Valvetrain DOHC
Engine oil capacity 6.1 l
6.45 US qt | 5.37 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 15.5 l
16.38 US qt | 13.64 UK qt
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1785 kg
3935.25 lbs.
Max. weight 2270 kg
5004.49 lbs.
Max load 485 kg
1069.24 lbs.
Trunk (boot) space – minimum 410 l
14.48 cu. ft.
Fuel tank capacity 58 l
15.32 US gal | 12.76 UK gal
AdBlue tank 12 l
3.17 US gal | 2.64 UK gal
Max. roof load 75 kg
165.35 lbs.
Permitted trailer load with brakes (8%) 2100 kg
4629.71 lbs.
Permitted trailer load with brakes (12%) 1900 kg
4188.78 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 80 kg
176.37 lbs.
Dimensions
Length 4705 mm
185.24 in.
Width 1846 mm
72.68 in.
Width including mirrors 2029 mm
79.88 in.
Height 1368 mm
53.86 in.
Wheelbase 2765 mm
108.86 in.
Front track 1587 mm
62.48 in.
Rear (Back) track 1568 mm
61.73 in.
Front overhang 906 mm
35.67 in.
Rear overhang 1034 mm
40.71 in.
Drag coefficient (Cd) 0.28
Minimum turning circle (turning diameter) 11.5 m
37.73 ft.
Approach angle 12.7°
Departure angle 13.1°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and the electric motor permanently drive the four wheels of the car with the ability to work only in mixed mode.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 8 gears, automatic transmission tiptronic
Front suspension Independent multi-link suspension
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs, 375 mm
Rear brakes Ventilated discs, 330 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 245/40 R18
Wheel rims size 8.5J x 18
