Specifications: Audi S5 Sportback (F5, facelift 2019) 3.0 TFSI V6 (354 Hp) quattro tiptronic 2020, 2021, 2022, 2023, 2024

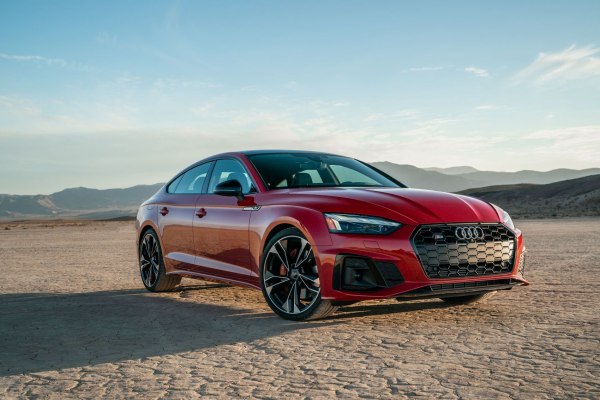

2020 Audi S5 Sportback (F5, facelift 2019) - Photo 1

Audi S5 Sportback (F5, facelift 2019) 3.0 TFSI V6 (354 Hp) quattro tiptronic – Full specifications
General information
Brand Audi
Model S5
Generation S5 Sportback (F5, facelift 2019)
Modification (Engine) 3.0 TFSI V6 (354 Hp) quattro tiptronic
Start of production January, 2020 year
End of production July, 2024 year
Powertrain Architecture Internal Combustion engine
Body type Fastback
Seats 5
Doors 5
Performance specs
Combined fuel consumption (WLTP) 9.8 l/100 km
24 US mpg
28.82 UK mpg
10.2 km/l
CO2 emissions (WLTP) 224 g/km
Fuel consumption (economy) – urban (EPA) 11.8 l/100 km
19.93 US mpg
23.94 UK mpg
8.47 km/l
Fuel consumption (economy) – extra urban (EPA) 8.1-8.7 l/100 km
29.04 – 27.04 US mpg
34.87 – 32.47 UK mpg
12.35 – 11.49 km/l
Fuel consumption (economy) – combined (EPA) 10.2 l/100 km
23.06 US mpg
27.69 UK mpg
9.8 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 4.8 sec
Acceleration 0 – 62 mph 4.8 sec
Acceleration 0 – 60 mph 4.5 sec
Maximum speed 250 km/h, Electronically limited
155.34 mph
Emission standard Euro 6
Weight-to-power ratio 4.7 kg/Hp, 211.3 Hp/tonne
Weight-to-torque ratio 3.4 kg/Nm, 298.5 Nm/tonne
Engine specs
Power 354 Hp @ 5400-6400 rpm.
Power per litre 118.2 Hp/l
Torque 500 Nm @ 1370-4500 rpm.
368.78 lb.-ft. @ 1370-4500 rpm.
Engine layout Front, Longitudinal
Engine Model/Code EA839 / CWGD
Engine displacement 2995 cm3
182.77 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 84.5 mm
3.33 in.
Piston Stroke 89 mm
3.5 in.
Compression ratio 11.2:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Twin-scroll turbo, Intercooler
Valvetrain DOHC
Engine oil capacity 7.3 l
7.71 US qt | 6.42 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 10 l
10.57 US qt | 8.8 UK qt
Engine systems Start & Stop System

Space, Volume and weights
Kerb Weight 1675-1845 kg
3692.74 – 4067.53 lbs.
Trunk (boot) space – minimum 465 l
16.42 cu. ft.
Fuel tank capacity 58 l
15.32 US gal | 12.76 UK gal
Max. roof load 90 kg
198.42 lbs.
Dimensions
Length 4765 mm
187.6 in.
Width 1843 mm
72.56 in.
Width including mirrors 2029 mm
79.88 in.
Height 1384 mm
54.49 in.
Wheelbase 2825 mm
111.22 in.
Front track 1587 mm
62.48 in.
Rear (Back) track 1568 mm
61.73 in.
Front overhang 906 mm
35.67 in.
Rear overhang 1034 mm
40.71 in.
Drag coefficient (Cd) 0.30
Minimum turning circle (turning diameter) 11.7 m
38.39 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives permanently the four wheels of the vehicle.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 8 gears, automatic transmission tiptronic
Front suspension Coil spring, Independent multi-link suspension, Transverse stabilizer
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs, 350 mm
Rear brakes Ventilated discs, 330 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 245/40 R18; 255/35 R19; 265/30 R20
Wheel rims size 8.5J x 18; 8.5J x 19; 9J x 20
