Specifications: Audi S6 (4A,C4) 4.2i V8 32V (290 Hp) quattro 1994, 1995, 1996, 1997

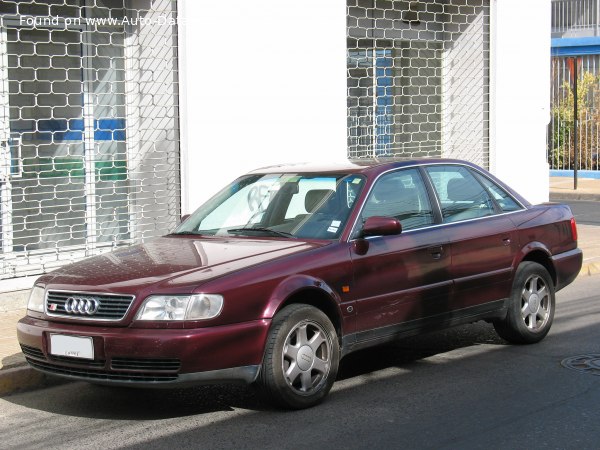

1995 Audi S6 (4A,C4) - Photo 1

Audi S6 (4A,C4) 4.2i V8 32V (290 Hp) quattro – Full specifications
General information
Brand Audi
Model S6
Generation S6 (4A,C4)
Modification (Engine) 4.2i V8 32V (290 Hp) quattro
Start of production September, 1994 year
End of production October, 1997 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 18.9 l/100 km
12.45 US mpg
14.95 UK mpg
5.29 km/l
Fuel consumption (economy) – extra urban 9 l/100 km
26.13 US mpg
31.39 UK mpg
11.11 km/l
Fuel consumption (economy) – combined 13 l/100 km
18.09 US mpg
21.73 UK mpg
7.69 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 5.9 sec
Acceleration 0 – 62 mph 5.9 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 5.6 sec
Maximum speed 249 km/h
154.72 mph
Weight-to-power ratio 5.8 kg/Hp, 171.1 Hp/tonne
Weight-to-torque ratio 4.2 kg/Nm, 236 Nm/tonne
Engine specs
Power 290 Hp @ 5800 rpm.
Power per litre 69.5 Hp/l
Torque 400 Nm @ 4000 rpm.
295.02 lb.-ft. @ 4000 rpm.
Engine layout Front, Longitudinal
Engine Model/Code AEC
Engine displacement 4172 cm3
254.59 cu. in.
Number of cylinders 8
Engine configuration V-engine
Cylinder Bore 84.5 mm
3.33 in.
Piston Stroke 93 mm
3.66 in.
Compression ratio 10.8:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 7.5 l
7.93 US qt | 6.6 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 8.5 l
8.98 US qt | 7.48 UK qt

Space, Volume and weights
Kerb Weight 1695 kg
3736.84 lbs.
Max. weight 2245 kg
4949.38 lbs.
Max load 550 kg
1212.54 lbs.
Trunk (boot) space – minimum 510 l
18.01 cu. ft.
Fuel tank capacity 80 l
21.13 US gal | 17.6 UK gal
Max. roof load 100 kg
220.46 lbs.
Permitted trailer load with brakes (8%) 2100 kg
4629.71 lbs.
Permitted trailer load with brakes (12%) 1900 kg
4188.78 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 75 kg
165.35 lbs.
Dimensions
Length 4797 mm
188.86 in.
Width 1804 mm
71.02 in.
Height 1430 mm
56.3 in.
Wheelbase 2692 mm
105.98 in.
Front track 1563 mm
61.54 in.
Rear (Back) track 1528 mm
60.16 in.
Drag coefficient (Cd) 0.34
Minimum turning circle (turning diameter) 11.4 m
37.4 ft.
Drivetrain, brakes and suspension specs
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent on trapezoidal lever
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 225/50 R16
Wheel rims size 7.5J x 16
