Specifications: Audi S6 Avant (4A,C4) 2.2i 20V Turbo (230 Hp) quattro Automatic 1994, 1995, 1996, 1997

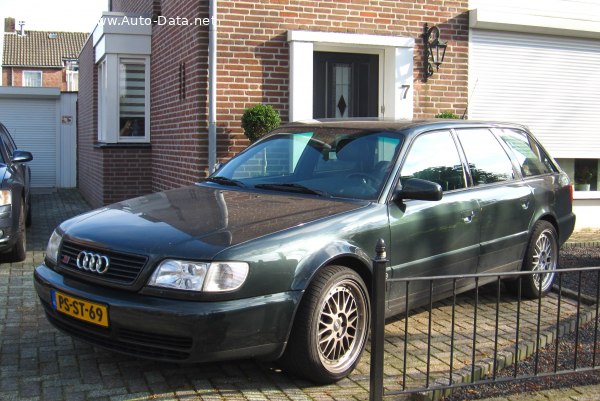

1995 Audi S6 Avant (4A,C4) - Photo 1

Audi S6 Avant (4A,C4) 2.2i 20V Turbo (230 Hp) quattro Automatic – Full specifications
General information
Brand Audi
Model S6
Generation S6 Avant (4A,C4)
Modification (Engine) 2.2i 20V Turbo (230 Hp) quattro Automatic
Start of production June, 1994 year
End of production July, 1997 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 16.1 l/100 km
14.61 US mpg
17.55 UK mpg
6.21 km/l
Fuel consumption (economy) – extra urban 8.4 l/100 km
28 US mpg
33.63 UK mpg
11.9 km/l
Fuel consumption (economy) – combined 10.8 l/100 km
21.78 US mpg
26.16 UK mpg
9.26 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 8.4 sec
Acceleration 0 – 62 mph 8.4 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 8 sec
Maximum speed 231 km/h
143.54 mph
Weight-to-power ratio 7.5 kg/Hp, 132.6 Hp/tonne
Weight-to-torque ratio 5 kg/Nm, 201.7 Nm/tonne
Engine specs
Power 230 Hp @ 5900 rpm.
Power per litre 103.3 Hp/l
Torque 350 Nm @ 1950 rpm.
258.15 lb.-ft. @ 1950 rpm.
Engine layout Front, Longitudinal
Engine Model/Code AAN
Engine displacement 2226 cm3
135.84 cu. in.
Number of cylinders 5
Engine configuration Inline
Cylinder Bore 81 mm
3.19 in.
Piston Stroke 86.4 mm
3.4 in.
Compression ratio 9.3:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Turbocharger
Valvetrain DOHC
Engine oil capacity 4.5 l
4.76 US qt | 3.96 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 9 l
9.51 US qt | 7.92 UK qt

Space, Volume and weights
Kerb Weight 1735 kg
3825.02 lbs.
Max. weight 2285 kg
5037.56 lbs.
Max load 550 kg
1212.54 lbs.
Trunk (boot) space – minimum 390 l
13.77 cu. ft.
Trunk (boot) space – maximum 1310 l
46.26 cu. ft.
Fuel tank capacity 80 l
21.13 US gal | 17.6 UK gal
Max. roof load 100 kg
220.46 lbs.
Permitted trailer load with brakes (8%) 2100 kg
4629.71 lbs.
Permitted trailer load with brakes (12%) 1650 kg
3637.63 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 75 kg
165.35 lbs.
Dimensions
Length 4797 mm
188.86 in.
Width 1804 mm
71.02 in.
Height 1440 mm
56.69 in.
Wheelbase 2692 mm
105.98 in.
Front track 1556 mm
61.26 in.
Rear (Back) track 1525 mm
60.04 in.
Drag coefficient (Cd) 0.35
Minimum turning circle (turning diameter) 11.4 m
37.4 ft.
Drivetrain, brakes and suspension specs
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 4 gears, automatic transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent on trapezoidal lever
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 225/50 R16
Wheel rims size 7.5J x 16
