Specifications: Audi S6 Avant (4F,C6) 5.2 FSI V10 (435 Hp) quattro Tiptronic 2006, 2007, 2008

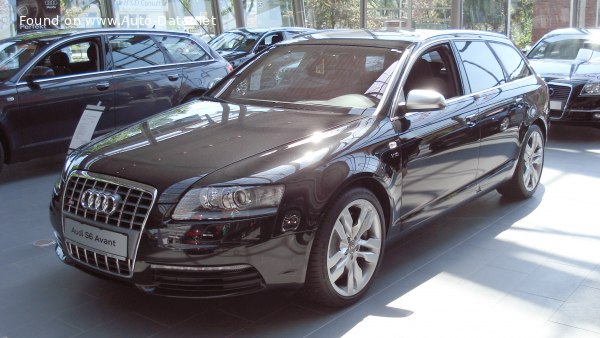

2006 Audi S6 Avant (4F,C6) - Photo 1

Audi S6 Avant (4F,C6) 5.2 FSI V10 (435 Hp) quattro Tiptronic – Full specifications
General information
Brand Audi
Model S6
Generation S6 Avant (4F,C6)
Modification (Engine) 5.2 FSI V10 (435 Hp) quattro Tiptronic
Start of production June, 2006 year
End of production October, 2008 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 19.7 l/100 km
11.94 US mpg
14.34 UK mpg
5.08 km/l
Fuel consumption (economy) – extra urban 9.7 l/100 km
24.25 US mpg
29.12 UK mpg
10.31 km/l
Fuel consumption (economy) – combined 13.4 l/100 km
17.55 US mpg
21.08 UK mpg
7.46 km/l
CO2 emissions 319 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 5.3 sec
Acceleration 0 – 62 mph 5.3 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 5 sec
Maximum speed 250 km/h
155.34 mph
Emission standard Euro 4
Weight-to-power ratio 4.5 kg/Hp, 220.8 Hp/tonne
Weight-to-torque ratio 3.6 kg/Nm, 274.1 Nm/tonne
Engine specs
Power 435 Hp @ 6800 rpm.
Power per litre 83.6 Hp/l
Torque 540 Nm @ 3000-4000 rpm.
398.28 lb.-ft. @ 3000-4000 rpm.
Engine layout Front, Longitudinal
Engine Model/Code BXA
Engine displacement 5204 cm3
317.57 cu. in.
Number of cylinders 10
Engine configuration V-engine
Cylinder Bore 84.5 mm
3.33 in.
Piston Stroke 92.8 mm
3.65 in.
Compression ratio 12.5:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 10 l
10.57 US qt | 8.8 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 12 l
12.68 US qt | 10.56 UK qt

Space, Volume and weights
Kerb Weight 1970 kg
4343.11 lbs.
Max. weight 2600 kg
5732.02 lbs.
Max load 630 kg
1388.91 lbs.
Trunk (boot) space – minimum 565 l
19.95 cu. ft.
Trunk (boot) space – maximum 1660 l
58.62 cu. ft.
Fuel tank capacity 80 l
21.13 US gal | 17.6 UK gal
Max. roof load 100 kg
220.46 lbs.
Permitted trailer load with brakes (8%) 2100 kg
4629.71 lbs.
Permitted trailer load with brakes (12%) 2100 kg
4629.71 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 85 kg
187.39 lbs.
Dimensions
Length 4933 mm
194.21 in.
Width 1864 mm
73.39 in.
Height 1453 mm
57.2 in.
Wheelbase 2847 mm
112.09 in.
Front track 1596 mm
62.83 in.
Rear (Back) track 1576 mm
62.05 in.
Drag coefficient (Cd) 0.34
Minimum turning circle (turning diameter) 11.9 m
39.04 ft.
Drivetrain, brakes and suspension specs
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 6 gears, automatic transmission Tiptronic
Front suspension Independent multi-link suspension
Rear suspension Independent on trapezoidal lever
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 265/35 R19
Wheel rims size 9J x 19
