Specifications: Audi SQ5 I (8R) 3.0 TDI V6 (313 Hp) quattro Tiptronic 2013, 2014, 2015

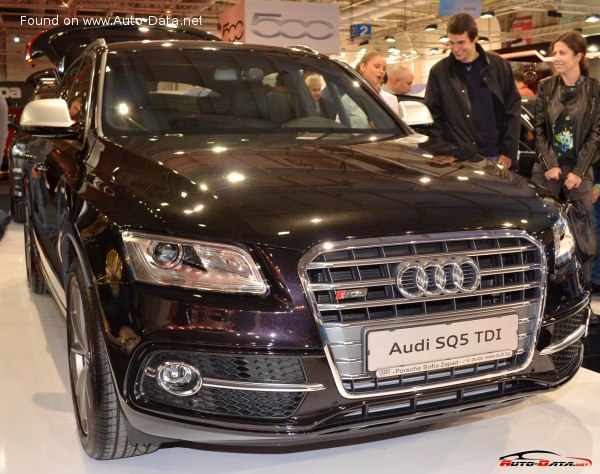

2014 Audi SQ5 I (8R) - Photo 1

Audi SQ5 I (8R) 3.0 TDI V6 (313 Hp) quattro Tiptronic – Full specifications
General information
Brand Audi
Model SQ5
Generation SQ5 I (8R)
Modification (Engine) 3.0 TDI V6 (313 Hp) quattro Tiptronic
Start of production 2013 year
End of production 2015 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 7.6 l/100 km
30.9 US mpg
37.2 UK mpg
13.2 km/l
Fuel consumption (economy) – extra urban 6.4 l/100 km
36.8 US mpg
44.1 UK mpg
15.6 km/l
Fuel consumption (economy) – combined 6.8 l/100 km
34.6 US mpg
41.5 UK mpg
14.7 km/l
CO2 emissions 179 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 5.1 sec
Acceleration 0 – 62 mph 5.1 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 4.8 sec
Maximum speed 250 km/h
155.34 mph
Emission standard Euro 5
Weight-to-power ratio 6.1 kg/Hp, 163 Hp/tonne
Weight-to-torque ratio 3 kg/Nm, 338.5 Nm/tonne
Engine specs
Power 313 Hp @ 3900-4500 rpm.
Power per litre 105.5 Hp/l
Torque 650 Nm @ 1450-2800 rpm.
479.42 lb.-ft. @ 1450-2800 rpm.
Engine layout Front, Longitudinal
Engine Model/Code CGQB
Engine displacement 2967 cm3
181.06 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 83 mm
3.27 in.
Piston Stroke 91.4 mm
3.6 in.
Compression ratio 16.8:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration BiTurbo, Intercooler
Valvetrain DOHC
Engine oil capacity 6.4 l
6.76 US qt | 5.63 UK qt
Engine oil specification Log in to see.Log in to see.
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 1920 kg
4232.88 lbs.
Max. weight 2530 kg
5577.7 lbs.
Max load 610 kg
1344.82 lbs.
Trunk (boot) space – minimum 540 l
19.07 cu. ft.
Trunk (boot) space – maximum 1560 l
55.09 cu. ft.
Fuel tank capacity 75 l
19.81 US gal | 16.5 UK gal
Max. roof load 75 kg
165.35 lbs.
Permitted trailer load with brakes (8%) 2400 kg
5291.09 lbs.
Permitted trailer load with brakes (12%) 2400 kg
5291.09 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 100 kg
220.46 lbs.
Dimensions
Length 4644 mm
182.83 in.
Width 1911 mm
75.24 in.
Width including mirrors 2089 mm
82.24 in.
Height 1624 mm
63.94 in.
Wheelbase 2813 mm
110.75 in.
Front track 1638 mm
64.49 in.
Rear (Back) track 1632 mm
64.25 in.
Front overhang 896 mm
35.28 in.
Rear overhang 935 mm
36.81 in.
Drag coefficient (Cd) 0.35
Minimum turning circle (turning diameter) 11.6 m
38.06 ft.
Drivetrain, brakes and suspension specs
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 8 gears, automatic transmission Tiptronic
Front suspension Independent multi-link suspension
Rear suspension Independent on trapezoidal lever
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 255/45 R20
Wheel rims size 8.5J x 20
