Specifications: Audi SQ5 II Sportback (FY, facelift 2020) 3.0 TFSI V6 (354 Hp) quattro tiptronic 2020, 2021, 2022, 2023, 2024

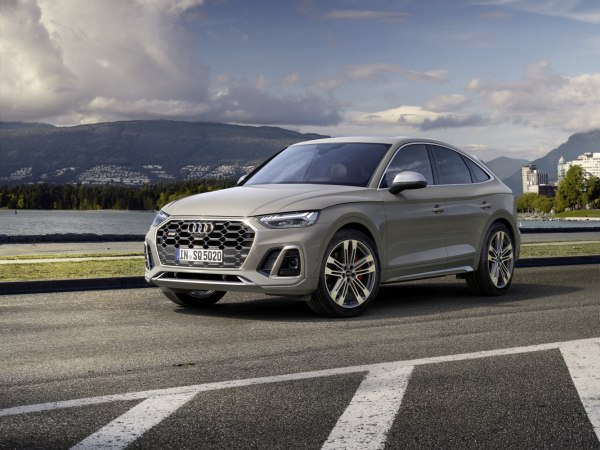

2021 Audi SQ5 II Sportback (FY, facelift 2020) - Photo 1

Audi SQ5 II Sportback (FY, facelift 2020) 3.0 TFSI V6 (354 Hp) quattro tiptronic – Full specifications
General information
Brand Audi
Model SQ5
Generation SQ5 II Sportback (FY, facelift 2020)
Modification (Engine) 3.0 TFSI V6 (354 Hp) quattro tiptronic
Start of production 2020 year
End of production 2024 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban (EPA) 12.4-13.1 l/100 km
19 – 18 US mpg
22.8 – 21.6 UK mpg
8.1 – 7.6 km/l
Fuel consumption (economy) – extra urban (EPA) 9.8 l/100 km
24 US mpg
28.8 UK mpg
10.2 km/l
Fuel consumption (economy) – combined (EPA) 11.2-11.8 l/100 km
21 – 19.9 US mpg
25.2 – 23.9 UK mpg
8.9 – 8.5 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 4.9 sec
Acceleration 0 – 62 mph 4.9 sec
Acceleration 0 – 60 mph 4.7 sec
Maximum speed 250 km/h, Electronically limited
155.34 mph
Emission standard Euro 6
Weight-to-power ratio 5.3 kg/Hp, 189.8 Hp/tonne
Weight-to-torque ratio 3.7 kg/Nm, 268.1 Nm/tonne
Engine specs
Power 354 Hp @ 5400-6400 rpm.
Power per litre 118.2 Hp/l
Torque 500 Nm @ 1370-4500 rpm.
368.78 lb.-ft. @ 1370-4500 rpm.
Engine layout Front, Longitudinal
Engine Model/Code EA839 / CWGD
Engine displacement 2995 cm3
182.77 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 84.5 mm
3.33 in.
Piston Stroke 89 mm
3.5 in.
Compression ratio 11.2:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Twin-scroll turbo, Intercooler
Valvetrain DOHC
Engine oil capacity 7.3 l
7.71 US qt | 6.42 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 10 l
10.57 US qt | 8.8 UK qt
Engine systems Start & Stop System

Space, Volume and weights
Kerb Weight 1865-2130 kg
4111.62 – 4695.85 lbs.
Trunk (boot) space – minimum 500 l
17.66 cu. ft.
Trunk (boot) space – maximum 1470 l
51.91 cu. ft.
Fuel tank capacity 70 l
18.49 US gal | 15.4 UK gal
Max. roof load 75 kg
165.35 lbs.
Permitted trailer load with brakes (12%) 1996 kg
4400.43 lbs.
Dimensions
Length 4689 mm
184.61 in.
Width 1893 mm
74.53 in.
Width including mirrors 2140 mm
84.25 in.
Height 1633 mm
64.29 in.
Wheelbase 2824 mm
111.18 in.
Front track 1624 mm
63.94 in.
Rear (Back) track 1612 mm
63.46 in.
Front overhang 910 mm
35.83 in.
Rear overhang 955 mm
37.6 in.
Drag coefficient (Cd) 0.33
Minimum turning circle (turning diameter) 11.8 m
38.71 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives permanently the four wheels of the vehicle.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 8 gears, automatic transmission tiptronic
Front suspension Coil spring, Independent multi-link suspension, Transverse stabilizer, Air Suspension – Optional
Rear suspension Independent multi-link spring suspension with stabilizer, Air Suspension – Optional
Front brakes Ventilated discs, 350 mm
Rear brakes Ventilated discs, 330 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 255/45 R20; 255/40 R21
Wheel rims size 8J x 20; 8.5J x 21
