Specifications: Audi TT Coupe (8N) 1.8 T (180 Hp) 1998, 1999, 2000

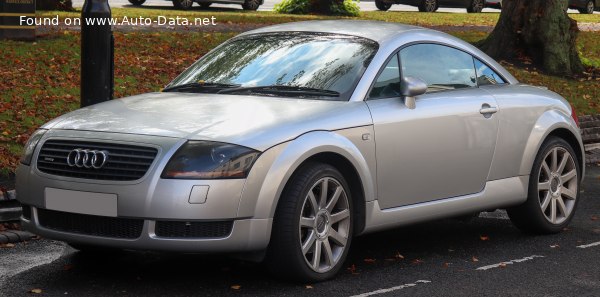

1999 Audi TT Coupe (8N) - Photo 1

Audi TT Coupe (8N) 1.8 T (180 Hp) – Full specifications
General information
Brand Audi
Model TT
Generation TT Coupe (8N)
Modification (Engine) 1.8 T (180 Hp)
Start of production October, 1998 year
End of production 2000 year
Powertrain Architecture Internal Combustion engine
Body type Coupe
Seats 4
Doors 3
Performance specs
Fuel consumption (economy) – urban 11 l/100 km
21.4 US mpg
25.7 UK mpg
9.1 km/l
Fuel consumption (economy) – extra urban 6.4 l/100 km
36.8 US mpg
44.1 UK mpg
15.6 km/l
Fuel consumption (economy) – combined 8.1 l/100 km
29 US mpg
34.9 UK mpg
12.3 km/l
CO2 emissions 194 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 7.5 sec
Acceleration 0 – 62 mph 7.5 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 7.1 sec
Maximum speed 228 km/h
141.67 mph
Emission standard Euro 3
Weight-to-power ratio 6.9 kg/Hp, 145.2 Hp/tonne
Weight-to-torque ratio 5.3 kg/Nm, 189.5 Nm/tonne
Engine specs
Power 180 Hp @ 5500 rpm.
Power per litre 101.1 Hp/l
Torque 235 Nm @ 1950 rpm.
173.33 lb.-ft. @ 1950 rpm.
Engine layout Front, Transverse
Engine Model/Code AJQ, APP, ATC, AUQ
Engine displacement 1781 cm3
108.68 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 81 mm
3.19 in.
Piston Stroke 86.4 mm
3.4 in.
Compression ratio 9.5:1
Number of valves per cylinder 5
Fuel injection system Multi-port manifold injection
Engine aspiration Turbocharger
Valvetrain DOHC
Engine oil capacity 4.5 l
4.76 US qt | 3.96 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7 l
7.4 US qt | 6.16 UK qt

Space, Volume and weights
Kerb Weight 1240 kg
2733.73 lbs.
Max. weight 1610 kg
3549.44 lbs.
Max load 370 kg
815.71 lbs.
Trunk (boot) space – minimum 270 l
9.53 cu. ft.
Trunk (boot) space – maximum 540 l
19.07 cu. ft.
Fuel tank capacity 55 l
14.53 US gal | 12.1 UK gal
Max. roof load 100 kg
220.46 lbs.
Dimensions
Length 4041 mm
159.09 in.
Width 1764 mm
69.45 in.
Height 1346 mm
52.99 in.
Wheelbase 2422 mm
95.35 in.
Front track 1528 mm
60.16 in.
Rear (Back) track 1513 mm
59.57 in.
Drag coefficient (Cd) 0.34
Minimum turning circle (turning diameter) 10.5 m
34.45 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 205/55 R16
Wheel rims size 7J x 16
