Specifications: Audi TT Roadster (8J, facelift 2010) 2.0 TFSI (211 Hp) S tronic 2010, 2011, 2012, 2013, 2014

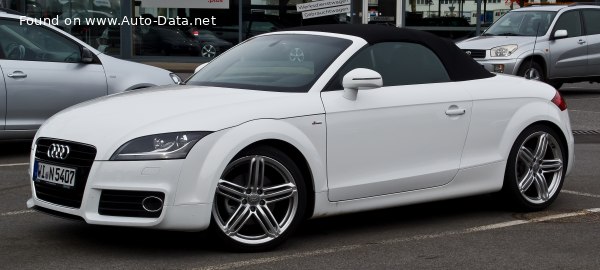

2010 Audi TT Roadster (8J, facelift 2010) - Photo 1

Audi TT Roadster (8J, facelift 2010) 2.0 TFSI (211 Hp) S tronic – Full specifications
General information
Brand Audi
Model TT
Generation TT Roadster (8J, facelift 2010)
Modification (Engine) 2.0 TFSI (211 Hp) S tronic
Start of production May, 2010 year
End of production June, 2014 year
Powertrain Architecture Internal Combustion engine
Body type Roadster
Seats 2
Doors 2
Performance specs
Fuel consumption (economy) – urban 10 l/100 km
23.5 US mpg
28.2 UK mpg
10 km/l
Fuel consumption (economy) – extra urban 5.6 l/100 km
42 US mpg
50.4 UK mpg
17.9 km/l
Fuel consumption (economy) – combined 7.2 l/100 km
32.7 US mpg
39.2 UK mpg
13.9 km/l
CO2 emissions 168 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 6.2 sec
Acceleration 0 – 62 mph 6.2 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 5.9 sec
Maximum speed 242 km/h
150.37 mph
Emission standard Euro 5
Weight-to-power ratio 6.3 kg/Hp, 159.8 Hp/tonne
Weight-to-torque ratio 3.8 kg/Nm, 265.2 Nm/tonne
Engine specs
Power 211 Hp @ 4300-6000 rpm.
Power per litre 106.4 Hp/l
Torque 350 Nm @ 1600-4200 rpm.
258.15 lb.-ft. @ 1600-4200 rpm.
Engine layout Front, Transverse
Engine Model/Code CESA, CETA
Engine displacement 1984 cm3
121.07 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 82.5 mm
3.25 in.
Piston Stroke 92.8 mm
3.65 in.
Compression ratio 9.6:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 4.6 l
4.86 US qt | 4.05 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 8.6 l
9.09 US qt | 7.57 UK qt

Space, Volume and weights
Kerb Weight 1320 kg
2910.1 lbs.
Max. weight 1640 kg
3615.58 lbs.
Max load 320 kg
705.48 lbs.
Trunk (boot) space – minimum 250 l
8.83 cu. ft.
Trunk (boot) space – maximum 700 l
24.72 cu. ft.
Fuel tank capacity 55 l
14.53 US gal | 12.1 UK gal
Dimensions
Length 4198 mm
165.28 in.
Width 1842 mm
72.52 in.
Width including mirrors 1952 mm
76.85 in.
Height 1358 mm
53.46 in.
Wheelbase 2468 mm
97.17 in.
Front track 1572 mm
61.89 in.
Rear (Back) track 1558 mm
61.34 in.
Front overhang 911 mm
35.87 in.
Rear overhang 819 mm
32.24 in.
Drag coefficient (Cd) 0.32
Minimum turning circle (turning diameter) 10.96 m
35.96 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission S tronic
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 225/55 R16
Wheel rims size 7.5J x 16
