Specifications: BAC Mono R 2.5 (340 Hp) Automatic 2019, 2020, 2021, 2022, 2023, 2024, 2025

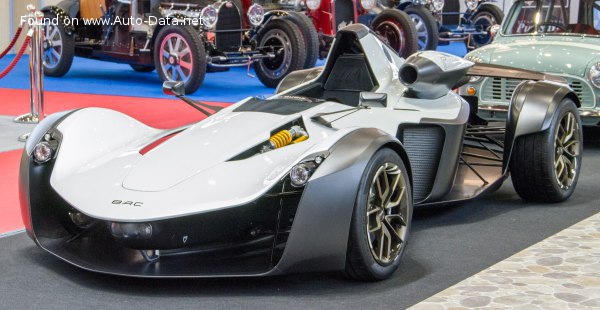

2019 BAC Mono R - Photo 1

BAC Mono R 2.5 (340 Hp) Automatic – Full specifications
General information
Brand BAC
Model Mono
Generation Mono R
Modification (Engine) 2.5 (340 Hp) Automatic
Start of production 2019 year
Powertrain Architecture Internal Combustion engine
Body type Roadster
Seats 1
Performance specs
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 1.7 kg/Hp, 600.7 Hp/tonne
Weight-to-torque ratio 1.7 kg/Nm, 583 Nm/tonne
Engine specs
Power 340 Hp
Power per litre 136.7 Hp/l
Torque 330 Nm
243.4 lb.-ft.
Engine layout Middle, Longitudinal
Engine displacement 2488 cm3
151.83 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 89 mm
3.5 in.
Piston Stroke 100 mm
3.94 in.
Fuel injection system Direct injection
Engine aspiration Naturally aspirated engine
Valvetrain VVT
Engine oil specification Log in to see.Log in to see.

Space, Volume and weights
Kerb Weight 566 kg
1247.82 lbs.
Fuel tank capacity 35 l
9.25 US gal | 7.7 UK gal
Dimensions
Length 4007 mm
157.76 in.
Width 1836 mm
72.28 in.
Height 1085 mm
42.72 in.
Wheelbase 2565 mm
100.98 in.
Ride height (ground clearance) 95-115 mm
3.74 – 4.53 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission
Front suspension Double wishbone
Rear suspension Double wishbone
Front brakes Ventilated discs
Rear brakes Ventilated discs
Tires size Front wheel tires: 205/40 R17
Rear wheel tires: 255/40 R17
Wheel rims size Front wheel rims: 7.5J x 17
Rear wheel rims: 8.5J x 17
