Specifications: BAIC BJ30 II e 1.5T (334 Hp) Hybrid DHT 2024, 2025

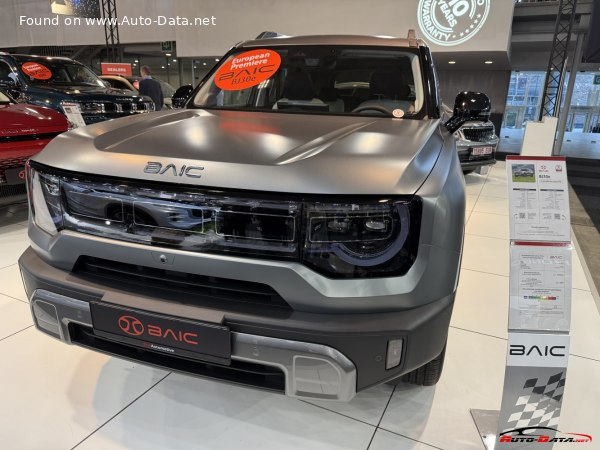

2024 BAIC BJ30 II - Photo 1

BAIC BJ30 II e 1.5T (334 Hp) Hybrid DHT – Full specifications
General information
Brand BAIC
Model BJ30
Generation BJ30 II
Modification (Engine) e 1.5T (334 Hp) Hybrid DHT
Start of production 2024 year
Powertrain Architecture FHEV (Full Hybrid Electric Vehicle)
Body type SUV
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – combined (WLTC) 5.85 l/100 km
40.2 US mpg
48.3 UK mpg
17.1 km/l
Fuel Type Petrol (Gasoline)
Maximum speed 170 km/h
105.63 mph
Emission standard Euro 6
Weight-to-power ratio 5.1 kg/Hp, 197.6 Hp/tonne
Weight-to-torque ratio 3.1 kg/Nm, 325.4 Nm/tonne
Electric cars and hybrids specs
Gross battery capacity 1.67 kWh
Battery technology Lithium nickel manganese cobalt oxides (Li-NMC)
Battery location Under the trunk
Electric motor 1
Electric motor power 177 Hp
Electric motor Torque 315 Nm

232.33 lb.-ft.
Electric motor model/code TZ210XYH02
Maximum revolutions of the electric motor 4300 rpm.
Electric motor location Integrated into the transmission
Electric motor type Synchronous
System power 334 Hp
System torque 550 Nm
405.66 lb.-ft.
Internal combustion engine specs
Power 158 Hp @ 5000 rpm.
Power per litre 105.5 Hp/l
Torque 235 Nm @ 2000-4500 rpm.
173.33 lb.-ft. @ 2000-4500 rpm.
Engine layout Front, Transverse
Engine Model/Code A156T2H-H1
Engine displacement 1498 cm3
91.41 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 74.5 mm
2.93 in.
Piston Stroke 85.9 mm
3.38 in.
Compression ratio 13.25:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 4.7 l
4.97 US qt | 4.14 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7 l
7.4 US qt | 6.16 UK qt
Engine systems Start & Stop System

Space, Volume and weights
Kerb Weight 1690 kg
3725.81 lbs.
Max. weight 2123 kg
4680.41 lbs.
Max load 433 kg
954.6 lbs.
Trunk (boot) space – minimum 450 l
15.89 cu. ft.
Trunk (boot) space – maximum 1496 l
52.83 cu. ft.
Fuel tank capacity 60 l
15.85 US gal | 13.2 UK gal
Max. roof load 80 kg
176.37 lbs.
Dimensions
Length 4730 mm
186.22 in.
Width 1910 mm
75.2 in.
Height 1790 mm
70.47 in.
Wheelbase 2820 mm
111.02 in.
Front track 1625 mm
63.98 in.
Rear (Back) track 1635 mm
64.37 in.
Front overhang 933 mm
36.73 in.
Rear overhang 977 mm
38.46 in.
Ride height (ground clearance) 215 mm
8.46 in.
Approach angle 25°
Departure angle 30°
Ramp-over (brakeover) angle 21°
Wading depth 450 mm
17.72 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and electric motor drive the front wheels of the car with the ability to work in full electric or mixed mode.
Drive wheel Front wheel drive
Number of gears and type of gearbox 2 gears, automatic transmission DHT
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 235/65 R18; 235/60 R19
Wheel rims size 7J x 18; 7J x 19
