Specifications: BAIC BJ60 2.0 TDI (163 Hp) Mild Hybrid 4WD Automatic 2023, 2024, 2025

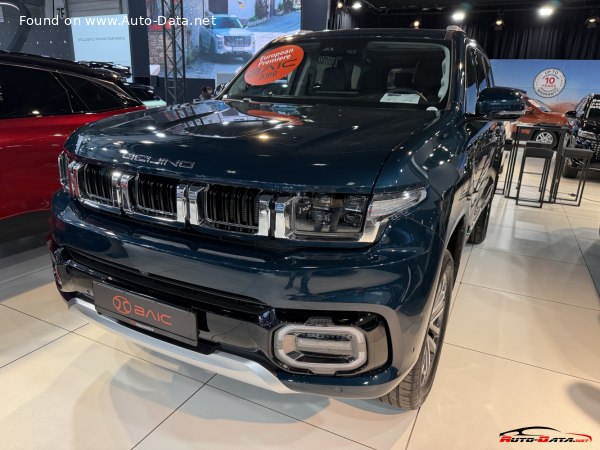

2022 BAIC BJ60 - Photo 1

BAIC BJ60 2.0 TDI (163 Hp) Mild Hybrid 4WD Automatic – Full specifications
General information
Brand BAIC
Model BJ60
Generation BJ60
Modification (Engine) 2.0 TDI (163 Hp) Mild Hybrid 4WD Automatic
Start of production September, 2023 year
Powertrain Architecture MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV)
Body type SUV
Seats 5-7
Doors 5
Performance specs
Fuel consumption (economy) – extra urban 8 l/100 km
29.4 US mpg
35.3 UK mpg
12.5 km/l
Fuel consumption (economy) – combined 8.5 l/100 km
27.7 US mpg
33.2 UK mpg
11.8 km/l
Fuel Type Diesel
Acceleration 0 – 100 km/h 14.8 sec
Acceleration 0 – 62 mph 14.8 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 14.1 sec
Maximum speed 160 km/h
99.42 mph
Weight-to-power ratio 14.7 kg/Hp, 67.9 Hp/tonne
Weight-to-torque ratio 6 kg/Nm, 166.7 Nm/tonne
Electric cars and hybrids specs
Battery voltage 48 V
Electric motor 1
Electric motor power 14 Hp
Electric motor Torque 50 Nm

36.88 lb.-ft.
Electric motor location Front, Longitudinal
Internal combustion engine specs
Power 163 Hp @ 3600 rpm.
Power per litre 82.8 Hp/l
Torque 400 Nm @ 1500-2400 rpm.
295.02 lb.-ft. @ 1500-2400 rpm.
Engine layout Front, Longitudinal
Engine Model/Code 4F20TC30
Engine displacement 1968 cm3
120.09 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 81 mm
3.19 in.
Piston Stroke 95.5 mm
3.76 in.
Compression ratio 16.2:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 5.2 l
5.49 US qt | 4.58 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 11 l
11.62 US qt | 9.68 UK qt
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 2400-2450 kg
5291.09 – 5401.33 lbs.
Max. weight 2900-3050 kg
6393.41 – 6724.1 lbs.
Max load 500-600 kg
1102.31 – 1322.77 lbs.
Trunk (boot) space – minimum 972 l
34.33 cu. ft.
Trunk (boot) space – maximum 1836 l
64.84 cu. ft.
Fuel tank capacity 85 l
22.45 US gal | 18.7 UK gal
Dimensions
Length 5040 mm
198.43 in.
Width 1955 mm
76.97 in.
Height 1925 mm
75.79 in.
Wheelbase 2820 mm
111.02 in.
Front track 1620 mm
63.78 in.
Rear (Back) track 1640 mm
64.57 in.
Ride height (ground clearance) 215 mm
8.46 in.
Minimum turning circle (turning diameter) 11.2 m
36.75 ft.
Approach angle 30°
Departure angle 24°
Ramp-over (brakeover) angle 25°
Climb angle 45°
Wading depth 750 mm
29.53 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and the electric motor permanently drive the rear wheels of the vehicle, capable of running only in mixed mode, and if necessary through the electrically or mechanically controlled clutch, the front wheels are driven.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 8 gears, automatic transmission
Front suspension Double wishbone, Independent coil spring
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 265/65 R18; 275/50 R20
Wheel rims size 8J x 18; 8.5J x 20
