Specifications: Baojun RS-5 1.5T (151 Hp) CVT 2019, 2020

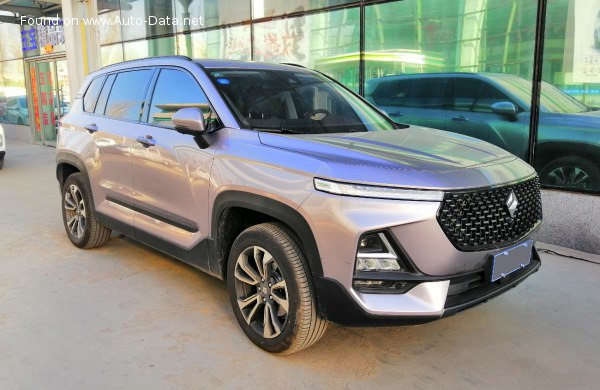

2019 Baojun RS-5 - Photo 1

Baojun RS-5 1.5T (151 Hp) CVT – Full specifications
General information
Brand Baojun
Model RS-5
Generation RS-5
Modification (Engine) 1.5T (151 Hp) CVT
Start of production February, 2019 year
End of production June, 2020 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 5
Doors 5
Performance specs
Fuel Type Petrol (Gasoline)
Emission standard China V
Weight-to-power ratio 10.2 kg/Hp, 97.7 Hp/tonne
Weight-to-torque ratio 6.1 kg/Nm, 165 Nm/tonne
Engine specs
Power 151 Hp @ 5200 rpm.
Power per litre 104.1 Hp/l
Torque 255 Nm @ 1600-3600 rpm.
188.08 lb.-ft. @ 1600-3600 rpm.
Engine Model/Code LJO
Engine displacement 1451 cm3
88.55 cu. in.
Number of cylinders 4
Engine configuration Inline
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DVVT
Engine oil capacity 4 l
4.23 US qt | 3.52 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7.1 l
7.5 US qt | 6.25 UK qt

Space, Volume and weights
Kerb Weight 1545-1630 kg
3406.14 – 3593.53 lbs.
Fuel tank capacity 62 l
16.38 US gal | 13.64 UK gal
Dimensions
Length 4570 mm
179.92 in.
Width 1870 mm
73.62 in.
Height 1720 mm
67.72 in.
Wheelbase 2700 mm
106.3 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 8 gears, automatic transmission CVT
Front suspension Independent type McPherson
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 225/55 R18
Wheel rims size 18
