Specifications: Bentley Flying Spur IV 4.0 V8 TFSi (782 Hp) Ultra Performance Hybrid AWD DCT 2024, 2025

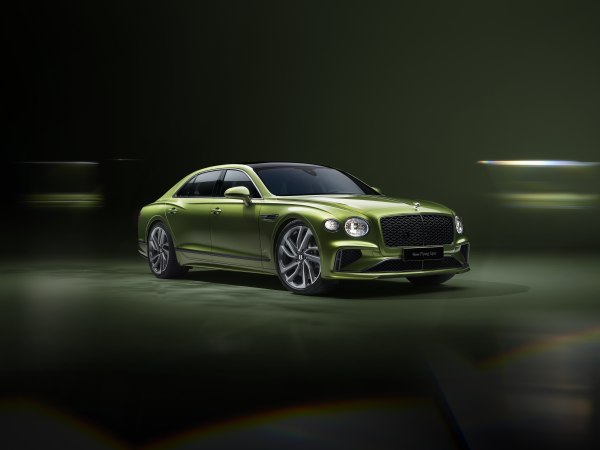

2025 Bentley Flying Spur IV - Photo 1

Bentley Flying Spur IV 4.0 V8 TFSi (782 Hp) Ultra Performance Hybrid AWD DCT – Full specifications
General information
Brand Bentley
Model Flying Spur
Generation Flying Spur IV
Modification (Engine) 4.0 V8 TFSi (782 Hp) Ultra Performance Hybrid AWD DCT
Start of production September, 2024 year
Powertrain Architecture PHEV (Plug-in Hybrid Electric Vehicle)
Body type Sedan
Seats 4-5
Doors 4
Performance specs
CO2 emissions (WLTP) 33 g/km
Fuel Type Petrol / electricity
Acceleration 0 – 100 km/h 3.5 sec
Acceleration 0 – 62 mph 3.5 sec
Acceleration 0 – 60 mph 3.3 sec
Maximum speed 285 km/h
177.09 mph
Weight-to-power ratio 3.3 kg/Hp, 304.2 Hp/tonne
Weight-to-torque ratio 2.6 kg/Nm, 389 Nm/tonne
Electric cars and hybrids specs
Gross battery capacity 25.9 kWh
All-electric range (NEDC) 76 km
47.22 mi
Max speed (electric) 140 km/h

86.99 mph
Charging ports Log in to see.Log in to see.
Electric motor 1
Electric motor power 190 Hp
Electric motor Torque 450 Nm

331.9 lb.-ft.
Electric motor location Between the combustion engine and the transmission
Electric motor type Synchronous
System power 782 Hp
System torque 1000 Nm
737.56 lb.-ft.
Internal combustion engine specs
Power 600 Hp @ 6000 rpm.
Power per litre 150.2 Hp/l
Torque 800 Nm @ 2000-4500 rpm.
590.05 lb.-ft. @ 2000-4500 rpm.
Engine layout Front, Longitudinal
Engine displacement 3996 cm3
243.85 cu. in.
Number of cylinders 8
Engine configuration V-engine
Cylinder Bore 86 mm
3.39 in.
Piston Stroke 86 mm
3.39 in.
Compression ratio 9.7:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Twin-Turbo, Intercooler
Valvetrain DOHC
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 2571 kg
5668.08 lbs.
Max. weight 3215 kg
7087.86 lbs.
Max load 644 kg
1419.78 lbs.
Trunk (boot) space – minimum 346 l
12.22 cu. ft.
Fuel tank capacity 80 l
21.13 US gal | 17.6 UK gal
Dimensions
Length 5316 mm
209.29 in.
Width 1988 mm
78.27 in.
Width including mirrors 2220 mm
87.4 in.
Height 1474 mm
58.03 in.
Wheelbase 3194 mm
125.75 in.
Front track 1670 mm
65.75 in.
Rear (Back) track 1664 mm
65.51 in.
Minimum turning circle (turning diameter) 12.4 m
40.68 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and the electric motor permanently drive the rear wheels of the vehicle, capable of running in full electric or mixed mode, and if necessary through the electrically or mechanically controlled clutch, the front wheels are driven.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 8 gears, automatic transmission DCT
Front suspension Double wishbone, Transverse stabilizer, Air suspension
Rear suspension Independent multi-link suspension, Air suspension, Transverse stabilizer
Front brakes Ventilated discs, 420×40 mm
Rear brakes Ventilated discs, 380×30 mm
Assisting systems ABS (Anti-lock braking system)
4-wheel steering (4WS, active rear steering)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size Front wheel tires: 275/35 ZR22
Rear wheel tires: 315/30 ZR22
Wheel rims size 22
