Specifications: Bentley Mulsanne II 6.75 V8 (512 Hp) Automatic 2010, 2011, 2012, 2013, 2014, 2015, 2016

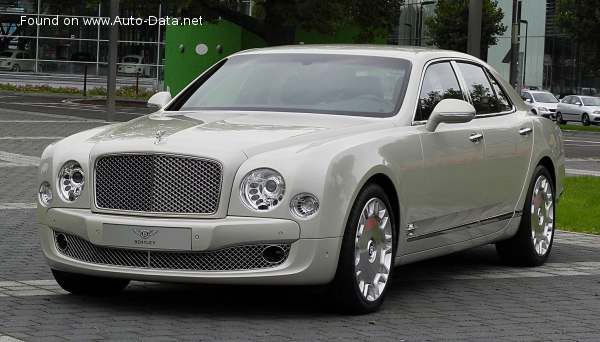

2010 Bentley Mulsanne II - Photo 1

Bentley Mulsanne II 6.75 V8 (512 Hp) Automatic – Full specifications
General information
Brand Bentley
Model Mulsanne
Generation Mulsanne II
Modification (Engine) 6.75 V8 (512 Hp) Automatic
Start of production 2010 year
End of production 2016 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 4
Doors 4
Performance specs
Fuel consumption (economy) – urban (NEDC) 25.3 l/100 km
9.3 US mpg
11.2 UK mpg
4 km/l
Fuel consumption (economy) – extra urban (NEDC) 11.8 l/100 km
19.9 US mpg
23.9 UK mpg
8.5 km/l
Fuel consumption (economy) – combined (NEDC) 16.9 l/100 km
13.9 US mpg
16.7 UK mpg
5.9 km/l
CO2 emissions (NEDC) 393 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 5.3 sec
Acceleration 0 – 62 mph 5.3 sec
Acceleration 0 – 60 mph 5.1 sec
Maximum speed 296 km/h
183.93 mph
Emission standard Euro 5
Weight-to-power ratio 5 kg/Hp, 198.1 Hp/tonne
Weight-to-torque ratio 2.5 kg/Nm, 394.6 Nm/tonne
Engine specs
Power 512 Hp @ 4200 rpm.
Power per litre 75.8 Hp/l
Torque 1020 Nm @ 1750 rpm.
752.31 lb.-ft. @ 1750 rpm.
Engine layout Front, Longitudinal
Engine Model/Code CKBB
Engine displacement 6752 cm3
412.03 cu. in.
Number of cylinders 8
Engine configuration V-engine
Cylinder Bore 104.14 mm
4.1 in.
Piston Stroke 99.06 mm
3.9 in.
Compression ratio 7.8:1
Number of valves per cylinder 2
Fuel injection system Multi-port manifold injection
Engine aspiration Twin-Turbo, Intercooler
Valvetrain OHV
Engine oil capacity 9.4 l
9.93 US qt | 8.27 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 20 l
21.13 US qt | 17.6 UK qt

Space, Volume and weights
Kerb Weight 2585 kg
5698.95 lbs.
Max. weight 3090 kg
6812.28 lbs.
Max load 505 kg
1113.33 lbs.
Trunk (boot) space – minimum 443 l
15.64 cu. ft.
Fuel tank capacity 96 l
25.36 US gal | 21.12 UK gal
Dimensions
Length 5575 mm
219.49 in.
Width with mirrors folded 1926 mm
75.83 in.
Width including mirrors 2208 mm
86.93 in.
Height 1521 mm
59.88 in.
Wheelbase 3266 mm
128.58 in.
Front track 1615 mm
63.58 in.
Rear (Back) track 1652 mm
65.04 in.
Minimum turning circle (turning diameter) 12.6 m
41.34 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 8 gears, automatic transmission
Front suspension Double wishbone
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs, 400×38 mm
Rear brakes Ventilated discs, 370×30 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 265/45 ZR20; 265/40 ZR21
Wheel rims size 9J x 20; 9J x 21
