Specifications: BMW 02 (E10) 2002 Turbo (170 Hp) 1974, 1975

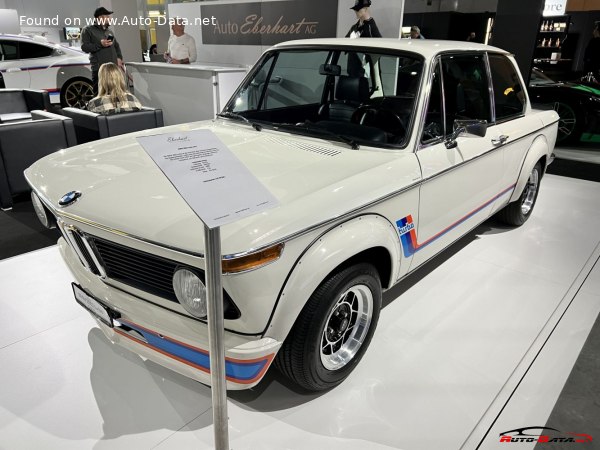

1966 BMW 02 (E10) - Photo 1

BMW 02 (E10) 2002 Turbo (170 Hp) – Full specifications
General information
Brand BMW
Model 02
Generation 02 (E10)
Modification (Engine) 2002 Turbo (170 Hp)
Start of production 1974 year
End of production 1975 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 4
Doors 2
Performance specs
Fuel consumption (economy) – extra urban 8.1 l/100 km
29 US mpg
34.9 UK mpg
12.3 km/l
Fuel consumption (economy) – combined 10.5 l/100 km
22.4 US mpg
26.9 UK mpg
9.5 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 6.9 sec
Acceleration 0 – 62 mph 6.9 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 6.6 sec
Maximum speed 211 km/h
131.11 mph
Weight-to-power ratio 6.1 kg/Hp, 164.3 Hp/tonne
Weight-to-torque ratio 4.2 kg/Nm, 236.7 Nm/tonne
Engine specs
Power 170 Hp @ 5800 rpm.
Power per litre 85.4 Hp/l
Torque 245 Nm @ 4000 rpm.
180.7 lb.-ft. @ 4000 rpm.
Engine layout Front, Longitudinal
Engine Model/Code M10B20
Engine displacement 1990 cm3
121.44 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 89 mm
3.5 in.
Piston Stroke 80 mm
3.15 in.
Compression ratio 6.9:1
Number of valves per cylinder 2
Fuel injection system Multi-port manifold injection
Engine aspiration Turbocharger
Valvetrain SOHC
Engine oil capacity 4.3 l
4.54 US qt | 3.78 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7 l
7.4 US qt | 6.16 UK qt

Space, Volume and weights
Kerb Weight 1035 kg
2281.78 lbs.
Max. weight 1440 kg
3174.66 lbs.
Max load 405 kg
892.87 lbs.
Trunk (boot) space – minimum 420 l
14.83 cu. ft.
Fuel tank capacity 70 l
18.49 US gal | 15.4 UK gal
Max. roof load 75 kg
165.35 lbs.
Dimensions
Length 4220 mm
166.14 in.
Width 1620 mm
63.78 in.
Height 1410 mm
55.51 in.
Wheelbase 2500 mm
98.43 in.
Front track 1375 mm
54.13 in.
Rear (Back) track 1362 mm
53.62 in.
Minimum turning circle (turning diameter) 10.4 m
34.12 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 4 gears, manual transmission
Front suspension Spring Strut, Wishbone, Torsion
Rear suspension Independent coil spring, Trailing arm, Coil spring
Front brakes Disc, 256 mm
Rear brakes Drum, 250 mm
Steering type Worm-reduction unit
Power steering Hydraulic Steering
Tires size Front wheel tires: 185/70 VR13
Rear wheel tires: 185/70 VR13
Wheel rims size Front wheel rims: 5.5J x 13
Rear wheel rims: 5.5J x 13
