Specifications: BMW 1 Series Convertible (E88 LCI, facelift 2011) 120i (170 Hp) 2011, 2012, 2013

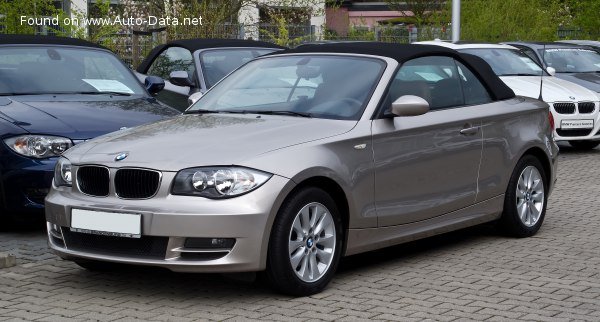

2011 BMW 1 Series Convertible (E88 LCI, facelift 2011) - Photo 1

BMW 1 Series Convertible (E88 LCI, facelift 2011) 120i (170 Hp) – Full specifications
General information
Brand BMW
Model 1 Series
Generation 1 Series Convertible (E88 LCI, facelift 2011)
Modification (Engine) 120i (170 Hp)
Start of production 2011 year
End of production 2013 year
Powertrain Architecture Internal Combustion engine
Body type Cabriolet
Seats 4
Doors 2
Performance specs
Fuel consumption (economy) – urban 8.8 l/100 km
26.7 US mpg
32.1 UK mpg
11.4 km/l
Fuel consumption (economy) – extra urban 5.6 l/100 km
42 US mpg
50.4 UK mpg
17.9 km/l
Fuel consumption (economy) – combined 6.8 l/100 km
34.6 US mpg
41.5 UK mpg
14.7 km/l
CO2 emissions 158 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 8.4 sec
Acceleration 0 – 62 mph 8.4 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 8 sec
Maximum speed 220 km/h
136.7 mph
Emission standard Euro 5
Weight-to-power ratio 8.4 kg/Hp, 118.9 Hp/tonne
Weight-to-torque ratio 6.8 kg/Nm, 146.9 Nm/tonne
Engine specs
Power 170 Hp @ 6700 rpm.
Power per litre 85.2 Hp/l
Torque 210 Nm @ 4250 rpm.
154.89 lb.-ft. @ 4250 rpm.
Engine layout Front, Longitudinal
Engine Model/Code N43B20A
Engine displacement 1995 cm3
121.74 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 84 mm
3.31 in.
Piston Stroke 90 mm
3.54 in.
Compression ratio 12:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Naturally aspirated engine
Engine oil capacity 4.25 l
4.49 US qt | 3.74 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7.2 l
7.61 US qt | 6.34 UK qt

Space, Volume and weights
Kerb Weight 1430 kg
3152.61 lbs.
Max. weight 1870 kg
4122.64 lbs.
Max load 440 kg
970.03 lbs.
Trunk (boot) space – minimum 260 l
9.18 cu. ft.
Trunk (boot) space – maximum 305 l
10.77 cu. ft.
Fuel tank capacity 53 l
14 US gal | 11.66 UK gal
Permitted trailer load with brakes (12%) 1200 kg
2645.55 lbs.
Permitted trailer load without brakes 680 kg
1499.14 lbs.
Permitted towbar download 75 kg
165.35 lbs.
Dimensions
Length 4360 mm
171.65 in.
Width 1748 mm
68.82 in.
Height 1411 mm
55.55 in.
Wheelbase 2660 mm
104.72 in.
Front track 1480 mm
58.27 in.
Rear (Back) track 1513 mm
59.57 in.
Ride height (ground clearance) 140 mm
5.51 in.
Drag coefficient (Cd) 0.34
Minimum turning circle (turning diameter) 10.7 m
35.1 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Double wishbone
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 205/55 R16 91V
Wheel rims size 7J x 16
