Specifications: BMW 1 Series Coupe (E82 LCI, facelift 2011) 135is (320 Hp) 2012, 2013

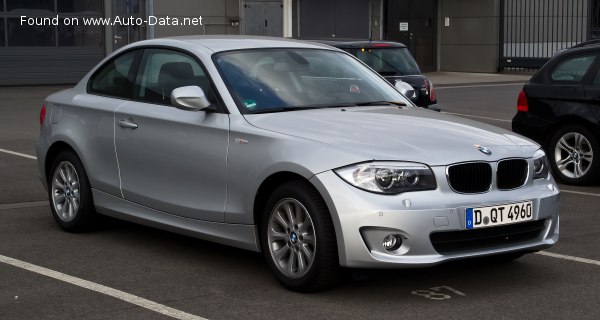

2011 BMW 1 Series Coupe (E82 LCI, facelift 2011) - Photo 1

BMW 1 Series Coupe (E82 LCI, facelift 2011) 135is (320 Hp) – Full specifications
General information
Brand BMW
Model 1 Series
Generation 1 Series Coupe (E82 LCI, facelift 2011)
Modification (Engine) 135is (320 Hp)
Start of production 2012 year
End of production 2013 year
Powertrain Architecture Internal Combustion engine
Body type Coupe
Seats 4
Doors 2
Performance specs
Fuel consumption (economy) – urban (EPA) 11.8 l/100 km
19.9 US mpg
23.9 UK mpg
8.5 km/l
Fuel consumption (economy) – extra urban (EPA) 8.4 l/100 km
28 US mpg
33.6 UK mpg
11.9 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 60 mph 4.9 sec
Maximum speed 241 km/h, Electronically limited
149.75 mph
Weight-to-power ratio 4.8 kg/Hp, 209.2 Hp/tonne
Weight-to-torque ratio 3.6 kg/Nm, 281 Nm/tonne
Engine specs
Power 320 Hp @ 5800 rpm.
Power per litre 107.4 Hp/l
Torque 430 Nm @ 1300-5000 rpm.
317.15 lb.-ft. @ 1300-5000 rpm.
Engine layout Front, Longitudinal
Engine Model/Code N55B30
Engine displacement 2979 cm3
181.79 cu. in.
Number of cylinders 6
Engine configuration Inline
Cylinder Bore 84 mm
3.31 in.
Piston Stroke 89.6 mm
3.53 in.
Compression ratio 10.2:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Twin-power turbo, Intercooler
Valvetrain VALVETRONIC, Double-VANOS
Engine oil capacity 6.5 l
6.87 US qt | 5.72 UK qt
Engine oil specification Log in to see.Log in to see.

Space, Volume and weights
Kerb Weight 1530 kg
3373.07 lbs.
Max. weight 1890 kg
4166.74 lbs.
Max load 360 kg
793.66 lbs.
Trunk (boot) space – minimum 370 l
13.07 cu. ft.
Fuel tank capacity 53 l
14 US gal | 11.66 UK gal
Max. roof load 75 kg
165.35 lbs.
Dimensions
Length 4373 mm
172.17 in.
Width 1748 mm
68.82 in.
Width including mirrors 1933 mm
76.1 in.
Height 1408 mm
55.43 in.
Wheelbase 2660 mm
104.72 in.
Front track 1481 mm
58.31 in.
Rear (Back) track 1514 mm
59.61 in.
Minimum turning circle (turning diameter) 10.7 m
35.1 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Spring Strut, Transverse stabilizer
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs, 338 mm
Rear brakes Ventilated discs, 325 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size Front wheel tires: 215/40 R18; 225/40 R18
Rear wheel tires: 245/35 R18; 255/35 R18
Wheel rims size Front wheel rims: 7.5J x 18; 8J x 18
Rear wheel rims: 8.5J x 18
