Specifications: BMW 1 Series Hatchback 3dr (F21) 114d (95 Hp) 2012, 2013, 2014, 2015

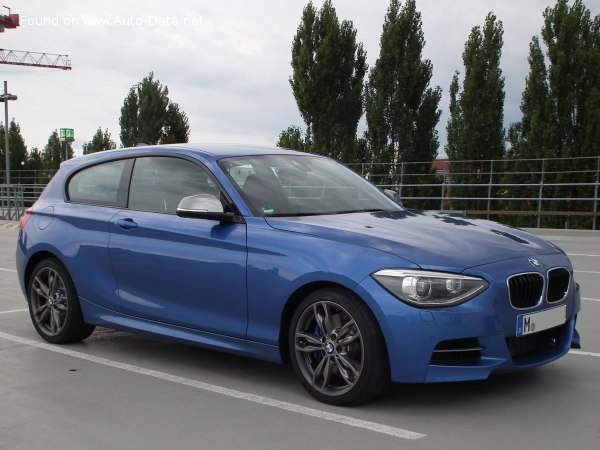

2012 BMW 1 Series Hatchback 3dr (F21) - Photo 1

BMW 1 Series Hatchback 3dr (F21) 114d (95 Hp) – Full specifications
General information
Brand BMW
Model 1 Series
Generation 1 Series Hatchback 3dr (F21)
Modification (Engine) 114d (95 Hp)
Start of production 2012 year
End of production 2015 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 4-5
Doors 3
Performance specs
Fuel consumption (economy) – urban 4.9-5.0 l/100 km
48 – 47 US mpg
57.6 – 56.5 UK mpg
20.4 – 20 km/l
Fuel consumption (economy) – extra urban 3.7-3.8 l/100 km
63.6 – 61.9 US mpg
76.3 – 74.3 UK mpg
27 – 26.3 km/l
Fuel consumption (economy) – combined 4.1-4.3 l/100 km
57.4 – 54.7 US mpg
68.9 – 65.7 UK mpg
24.4 – 23.3 km/l
CO2 emissions 109-112 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 12.2 sec
Acceleration 0 – 62 mph 12.2 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 11.6 sec
Maximum speed 185 km/h
114.95 mph
Emission standard Euro 5
Weight-to-power ratio 13.7 kg/Hp, 72.8 Hp/tonne
Weight-to-torque ratio 5.6 kg/Nm, 180.1 Nm/tonne
Engine specs
Power 95 Hp @ 4000 rpm.
Power per litre 59.4 Hp/l
Torque 235 Nm @ 1500-2750 rpm.
173.33 lb.-ft. @ 1500-2750 rpm.
Engine layout Front, Longitudinal
Engine Model/Code N47D16A
Engine displacement 1598 cm3
97.52 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 78 mm
3.07 in.
Piston Stroke 83.6 mm
3.29 in.
Compression ratio 16.5:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Twin-power turbo, Intercooler
Engine oil capacity 5.2 l
5.49 US qt | 4.58 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7 l
7.4 US qt | 6.16 UK qt
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 1305 kg
2877.03 lbs.
Max. weight 1835 kg
4045.48 lbs.
Max load 530 kg
1168.45 lbs.
Trunk (boot) space – minimum 360 l
12.71 cu. ft.
Trunk (boot) space – maximum 1200 l
42.38 cu. ft.
Fuel tank capacity 52 l
13.74 US gal | 11.44 UK gal
Max. roof load 75 kg
165.35 lbs.
Dimensions
Length 4324 mm
170.24 in.
Width 1765 mm
69.49 in.
Height 1421 mm
55.94 in.
Wheelbase 2690 mm
105.91 in.
Front track 1535 mm
60.43 in.
Rear (Back) track 1569 mm
61.77 in.
Ride height (ground clearance) 140 mm
5.51 in.
Drag coefficient (Cd) 0.30
Minimum turning circle (turning diameter) 10.9 m
35.76 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Double wishbone
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 205/55 R16; 205/50 R17; 225/45 R17; 245/40 R17; 225/40 R18; 245/35 R18
Wheel rims size 7J x 16; 7J x 17; 7.5J x 17; 8J x 17; 7.5J x 18; 8J x 18
