Specifications: BMW 1 Series Hatchback 5dr (E87 LCI, facelift 2007) 116i (122 Hp) 2007, 2008, 2009

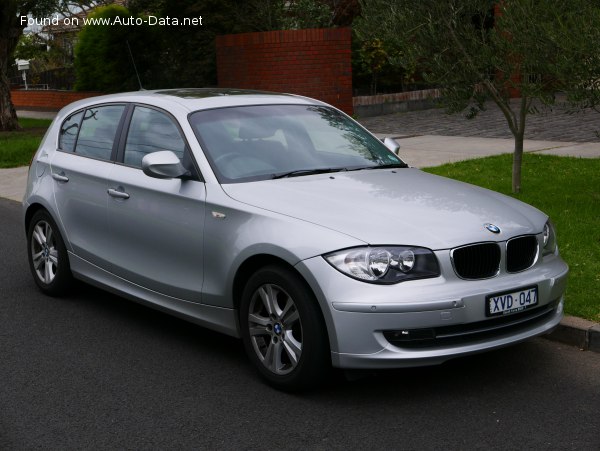

2007 BMW 1 Series Hatchback 5dr (E87 LCI, facelift 2007) - Photo 1

BMW 1 Series Hatchback 5dr (E87 LCI, facelift 2007) 116i (122 Hp) – Full specifications
General information
Brand BMW
Model 1 Series
Generation 1 Series Hatchback 5dr (E87 LCI, facelift 2007)
Modification (Engine) 116i (122 Hp)
Start of production 2007 year
End of production 2009 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 8 l/100 km
29.4 US mpg
35.3 UK mpg
12.5 km/l
Fuel consumption (economy) – extra urban 5.1 l/100 km
46.1 US mpg
55.4 UK mpg
19.6 km/l
Fuel consumption (economy) – combined 6.2 l/100 km
37.9 US mpg
45.6 UK mpg
16.1 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 9.9 sec
Acceleration 0 – 62 mph 9.9 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9.4 sec
Maximum speed 204 km/h
126.76 mph
Emission standard Euro 5
Weight-to-power ratio 11.1 kg/Hp, 90.4 Hp/tonne
Weight-to-torque ratio 8.4 kg/Nm, 118.5 Nm/tonne
Engine specs
Power 122 Hp @ 6000 rpm.
Power per litre 76.4 Hp/l
Torque 160 Nm @ 4250 rpm.
118.01 lb.-ft. @ 4250 rpm.
Engine layout Front, Longitudinal
Engine Model/Code N43B16A
Engine displacement 1597 cm3
97.45 cu. in.
Number of cylinders 4
Engine configuration Inline
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Naturally aspirated engine
Engine oil capacity 4.25 l
4.49 US qt | 3.74 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7 l
7.4 US qt | 6.16 UK qt

Space, Volume and weights
Kerb Weight 1350 kg
2976.24 lbs.
Max. weight 1748 kg
3853.68 lbs.
Max load 398 kg
877.44 lbs.
Trunk (boot) space – minimum 330 l
11.65 cu. ft.
Trunk (boot) space – maximum 1150 l
40.61 cu. ft.
Fuel tank capacity 53 l
14 US gal | 11.66 UK gal
Dimensions
Length 4239 mm
166.89 in.
Width 1748 mm
68.82 in.
Height 1421 mm
55.94 in.
Wheelbase 2660 mm
104.72 in.
Front track 1484 mm
58.43 in.
Rear (Back) track 1497 mm
58.94 in.
Drag coefficient (Cd) 0.29
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent type McPherson, Transverse stabilizer
Rear suspension Independent multi-link suspension, Transverse stabilizer
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 195/55 R16 H
Wheel rims size 6J x 16
